.001UF @ 6000V asc metalized polyester capacitors:qty=8


* ...Always a Money Back Guarantee

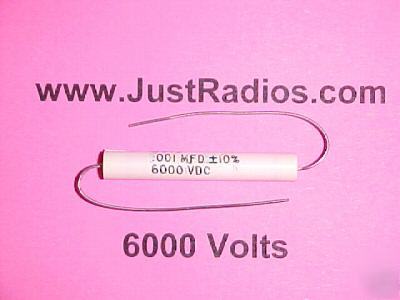

On sale are packages of eight (8) brand new 0.001uF/mfd (1000pF) tubular axial leaded 6000 Volt metallized polyester film capacitors.
These 6,000 Volt Metallized Polyester Film Capacitors are for circuits where extra high voltage, self healing property and long stable capacitor life are required. Flame retardant, humidity resistant tape wrap and epoxy filled tubular case with extra long axial leads. Made in USA by ISO 9001 & 2000 certified manufacturer ASC Capacitors .
Capacitor Features and Specifications:
* Capacitor Construction / Dielectric: Non-inductive wound metallized polyester film (ASC type X675).
* Capacitor Case: Flame retardant tape wrap case and epoxy fill. Humidity resistant.
* Capacitor Leads: Extra long axial leads. Each lead is aprox 2 1/2" (63mm) long.
* Capacitance uF/MFD and Rated Voltages available: 0.001uF (1000pF) at 6000 Volts.
* Capacitor Tolerance: +/- 10%
* Lowest Dissipation Factor.
* Very High Insulation Resistance.
* Capacitor Dielectric Strength: 140% of rated voltage for 10 seconds through a limiting resistance of 100 ohms/volt at 25 degrees C.
* Temperature: -55C to +65C at full rated voltage operational temperature, to +85C with 25% voltage derating, +105C max storage temp.
* Capacitor Applications: HV filter, sweep circuits, vertical and horizontal coupling, timing, CRT & integrated circuitry and electrostatic deflection. Used in test, scientific, medical, television and other applications where very high voltage, self healing and long stable life required.
* ASC X675 electrical parameters similar to Dearborn 430P, Electrocube 520B, F-Dyne/Southern MPH11H and Sprague (SBE) 430P.
* ISO 9001 & 2000 certified.
