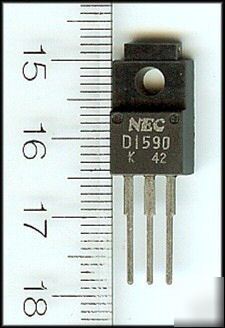

2SD1590 / D1590 npn darlington transistor
Now over 1,400 items in our Store!
Please note: The following spec sheet / information is provided by the manufacturer and may cover several different items and/or products. I am offering the part listed in the heading and picture ONLY.
Description = NPN Darlington Transistor
I(C) Abs.(A) Collector Current = 8.0
Absolute Max. Power Diss. (W) = 25
@V(CBO) (V) (Test Condition) = 100
h(FE) Min. Static Current Gain = 2.0k
h(FE) Max. Current gain. = 15k
@I(C) (A) (Test Condition) = 3.0
@V(CE) (V) (Test Condition) = 2.0
@I(C) (A) (Test Condition) = 3.0
@I(B) (A) (Test Condition) = 3.0m
t(on) Max. (s) Turn-On Time = 1.0u
t(s) Max. (s) Storage time. = 3.5u
t(f) Max. (s) Fall time. = 1.2u
Semiconductor Material = Silicon
