Allen-bradley MSR211P monitoring safety relay ~I3

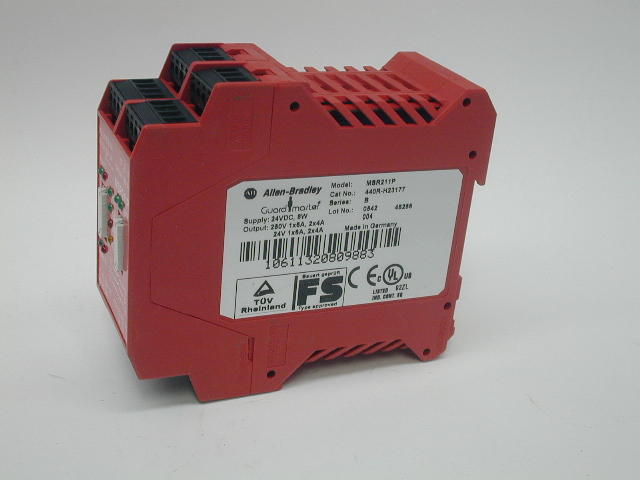

ALLEN-BRADLEY MSR211P Monitoring Safety Relay ~I3
Winner gets one of these units. The unit is new, with original insert flyer. The info we found on this units, as follows: The MSR211P forms one of the base units for the modular Minotaur MSR200 family of monitoring safety relays. It can be combined with other modules of the MSR200 Series to configure a safety control system with numbers of inputs and outputs matching users’ specific application requirements, as well as diagnostic and networking capabilities. Up to 10 input modules and 2 output modules can be connected to one base unit by simply removing the terminator, included with each base unit, and connecting the ribbon cables of the neighboring module. The terminators must be inserted into the final input and output modules.
The MSR211P has two inputs. Each input can be wired in one of three ways: 1N.C., 2 N.C., or 2 PNP connections from a light curtain. The MSR211P does not perform cross fault monitoring, and would not detect a short across the inputs of a 2 N.C. input. When connected to light curtains, the light curtain must perform the cross fault detection.
The MSR211P has the capability to perform external device monitoring (EDM). The EDM capability works in conjunction with the reset option. The user selects EDM and the reset function by jumpers across terminals Y40, Y41 and Y42.
The MSR211P has two semiconductor outputs designed to send status information to a PLC. Terminal Y33 indicates the inputs are closed (the Ready LED is on). Terminal Y32 indicates the outputs are active.
The outputs include 2 normally open safety rated outputs and 1 normally closed auxiliary output. The safety outputs have independent and redundant internal contacts to help ensure the safety function.
2 Input circuits: light curtain, gate, or E-Stop inputs
2 Safety outputs, 1 auxiliary output
