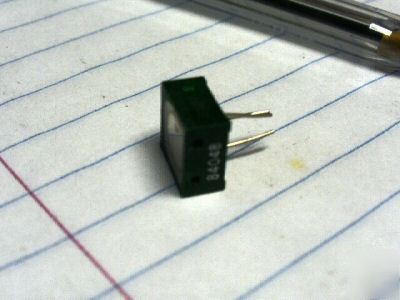

Resistor,variable,wire wound,nonprecision
ELECTRICAL RESISTANCE PER SECTION - 500.000 OHMS SINGLE SECTION
RESISTANCE TOLERANCE PER SECTION IN PERCENT - -5.0 TO 5.0 SINGLE SECTION
STANDARD TAPER CURVE PER SECTION - A SINGLE SECTION
MAXIMUM STARTING TORQUE - 5.00 INCH-OUNCES
TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS - -50.0 TO 50.0 SINGLE SECTION
POWER DISSIPATION RATING PER SECTION IN WATTS - 0.5 FREE AIR SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER - 85.0 SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER - 150.0 SINGLE SECTION
BODY STYLE - 32B RECTANGULAR W/MOUNTING HOLES
BODY LENGTH - 0.405 INCHES NOMINAL
BODY WIDTH - 0.185 INCHES NOMINAL
BODY HEIGHT - 0.375 INCHES NOMINAL
LATERAL DISTANCE BETWEEN MOUNTING HOLE CENTERS - 0.375 INCHES NOMINAL
SHAFT STYLE - 3C ROUND, SLOTTED
SHAFT DIAMETER - 0.075 INCHES NOMINAL
SHAFT LENGTH - 0.080 INCHES MAXIMUM
MOUNTING FACILITY QUANTITY - 2
MOUNTING HOLE DIAMETER - 0.078 INCHES NOMINAL
TERMINAL TYPE AND QUANTITY - 3 PIN
CENTER TO CENTER DISTANCE BETWEEN TERMINALS - 0.200 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN CENTER TERMINAL AND OUTSIDE TERMINAL - 0.100 INCHES NOMINAL
TERMINAL LENGTH - 0.250 INCHES NOMINAL
TERMINAL LOCATION - LOWER ADJACENT SIDE TWO ROWS
CENTER TO CENTER DISTANCE BETWEEN TERMINAL ROWS - 0.100 INCHES NOMINAL
RELIABILITY INDICATOR - ESTABLISHED
RELIABILITY FAILURE RATE LEVEL IN PERCENT - 0.010
TEST DATA DOCUMENT - 81349-MIL-R-39015 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-R-39015/3 GOVERNMENT SPECIFICATION
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MILR39015-3
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - M39015/3-006PR
