Eagle Signal Controls LX260P9 Multi-Function Timer
Wide selection of used semiconductor equipment and electronic test manufacturing equipment and more – industrial equipment, semiconductor equipment, used industrial equipment, electronic test equipment and used semiconductor equipment and used electronic equipment from Equipment Exchange!
Equipment Exchange is one of the world's largest sellers of pre-owned or used semiconductor equipment, electronic test and manufacturing equipment online. Because our manufacturing equipment is used equipment, Equipment Exchange sells within your budget. If you are a start-up company or just trying to save money, our used semiconductor equipment, manufacturing equipment, industrial equipment and electronic test equipment will fit your needs.
For all of your used semiconductor equipment needs let Equipment Exchange help find it for you, whether it be used semiconductor equipment, electronic test equipment, industrial equipment, used electronic equipment, used industrial equipment – we save you money!

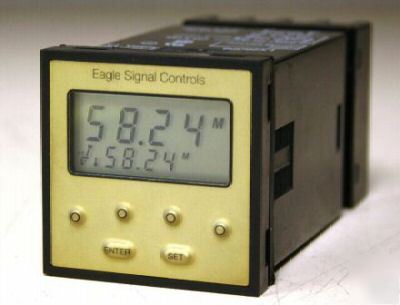

Eagle Signal Controls LX260P9 Multi-Function Timer
* Electrical Requirements: 115/220 Volts AC, 24 VAC/VDC
* Output: SPDT 240VAC, 10 Amps
An excellent value in its class, the LX260P9 (Same as B856) features a compact 1/16 DIN package, precise digital setting, versatile functionality, and a straightforward button-per-digit interface.
It can be easily programmed to perform any standard timing operation: On-Delay, Off-Delay, Interval, or Repeat Cycle. A unique On-Delay/ Interval Mode can, in many cases, perform the function of two separate timers. Output is via DPDT relay contacts.
Five selectable time ranges and a programmable decimal point provide preset times ranging from 0.01 seconds to 9999 hours.
A standard model features a timed DPDT contact output while another model includes separate timed and instantaneous SPDT contacts. All are rated for 5 Amp loads.
Simplicity of operation is maintained while still providing a high level of functionality. All programming is done through the front panel, with an intuitive button-per-digit keypad that makes entry of preset times quick and easy. A crisp dual line LCD display lets the operator readily view elapsed or remaining cycle time as well as the preset value. Prominent annunciators indicate information such as the time range and the status of the input and outputs.
* Button-per-digit preset entry simplifies setup and operation
* High Contrast dual line LCD display indicates both Process Time and Preset Value
* Field selectable for operation in On-Delay, Off-Delay, Interval 1, Interval 2, or Repeat Cycle modes
* Universal Power Supply accepts 24 - 240 VAC or 24 VDC
* Designed to meet IEC 801 level 4 noise immunity standards for increased reliability
* Unique On-Delay/Interval mode lets one unit do the work of two in many applications
* Industry standard socket connection
* Programmable security levels prevent unauthorized setpoint or program changes
* UL, CUL recognized, CE compliant
* IEC IP65 rated front panel for use in washdown environments
