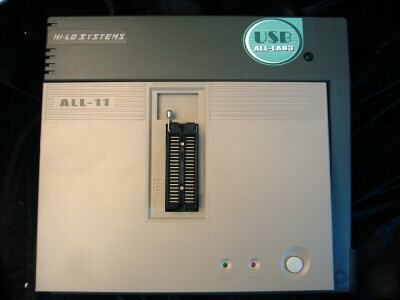

Hi lo all-11P3 usb fast universal programmer mcu epprom
ALL-11P3 - USB and parallel connection to PC, can work with PAC-GANG-08. Internal power supply.
The most popular universal programmer have been simplified
* ALL-11P3 supports device programming for a variety of device types covering EPROM, EEPROM, Serial PROM, FLASH, PLD/CPLD/FPGA, MPU/MCU, etc. Most of programmable devices in DIP, SDIP, SOP, SSOP, TSOP, PLCC, QFP, or BGA package types can be programmed on a default DIP40 socket or through an appropriate ADAPTER/CONVERTER. High speed USB port is provided to connect to the majority of notebook or desktop PC runs on Windows 98/ Me/ 2000/ XP/ 2003.
* ALL-11P3 features modular pin drivers to provide excellent programming capabilities at high speed, high reliability and high expansion flexibility. All pin drivers of ALL-11P3 are fully programmable to meet modern programming / testing needs including new released low voltage devices in the market.
* ALL-11P3 is a very powerful universal programming tool designed to help engineers tackle today's challenges in device programming.
Utilize flexible pin drivers to get accurate waveforms, high programming speed plus over current protection, reverse insertion detection, self diagnostic etc. ensures ALL-11A's excellent performance.
Over 12,000 programmable devices can be programmed covering EPROM, EEPROM, Serial PROM, FLASH, PLD/CPLD/FPGA, MPU/MCU, etc. in DIP, SDIP, SOP, SSOP, TSOP, PLCC, QFP, or BGA etc. package types.
Runs on Windows. After master read or file download from PC, user only needs to select function from Menu and then hit YES key on programmer to start program function. Operation is very easy.
Utilizing proven ALL-11P3 technology, the programming quality is getting perfect.
Over 800 ADAPTERs, 150 CONVERTERs are available for future expansion to ensure your capital investment retained.
Release New Device Support via Internet Weekly
Free software download provided.
Distribution channel covers 35 countries worldwide. Your problem could be taken care anywhere around the world.
Ideal for Engineering as well as Production Environment
Wide device covering range, flexible future expansion capability help engineers to achieve challenging time-to-market goal.
Pin Count: from 8 up to over 300 pins
Device Type: covering EPROM, EEPROM, Serial PROM, Flash, PLD/CPLD/FPGA, MPU/MCU
Others - SDIP, SOP, SSOP, PLCC, MLF etc. through optional
Controller - Single chip controller
Load file, Read Master, Program, Verify, Auto, ID Check, Check sum, Blank Check, Erase, Secure, Protect/Unprotect, Edit, Function Configuration, Self Test
An Intel Pentium or compatible processor with 32MB of RAM
At least one USB port is available
20 MB free hard disk space with Windows 98/ Me/ 2000/ XP/ 2003 operating system
Power consumption - 0.5A Rating
W x L x H - 250mm x 220mm x 50mm
ALL-11: Mainframe unit with DIP40 socket, 1x USB cable ( A type to B type), driver S/W and user manual in CD-ROM.
What are the main differences between ALL-11C ALL-11C2, ALL-11P ALL-11P2 and ALL-11P3 ?
* Hardware design and programming speed vary according to the model, but all our adaptors and converters are compatible in supporting. Updated software for ALL-11P3 can be applied in all three models. Main distinctions of each model:
* ALL-11C - RS232 connection to the PC, the module does not work with PAC-GANG-08. External power supply.
* ALL-11C2 - Parallel connection to the PC, the module does not work with PAC-GANG-08. External power supply.
* ALL-11P - RS 232 connection to PC, no parallel port, can work with PAC-GANG-08. Internal power supply. Obsolete model.
* ALL-11P2 - Parallel and RS232 connection to PC, can work with PAC-GANG-08. Internal power supply.
* ALL-11P3 - USB connection to PC, can work with PAC-GANG-08. Internal power supply.
·1x CD-R(English manual and Software)
For warranty parts and service:
Will send a replacement unit within warranty period upon received the defective unit
Spare parts are available upon providing parts number,
All purchased are final, will replace defective product only.
Return package must be in the original packaging, everything must be in new condition. Missing partÂ’s or anything in original contact will not qualify for any refund.
Defective item can be exchanged within 7 days of receipt.
Replacement and refunds will not be processed until the return item received.
