Hipotronics ac/dc hipot insulation

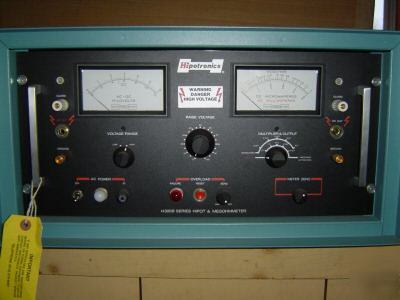

The 300 Series AC/DC Hipot and Megohmmeter is an accurate bench type instrument designed to perform insulation tests on all types of electrical system components, assemblies and apparatus. They are designed for ac dielectric tests, dc dielectric tests and insulation resistance measurements with direct megohmmeter readings at 500 V dc output. These testers are popular in the laboratory environment due to the highly sensitive DC current meter and easily accessible front panel controls. They are also popular in production applications due to the rugged construction and ease of use.
* Recessed, Locking High Voltage Connection - Minimizes user accessibility to high voltage. Also prevents the output lead from being removed from the high voltage outlet.
* Interlock Provision - Allows easy installation of any type of safety switch into the control circuitry. Breaking circuit will disable the high voltage output.
* Over Current Protection with Manual Reset - Protects the test object from excess current levels by rapidly shutting down the high voltage. The overload sensitivity is continuously adjustable to handle various test loads.
* Gravity Operated Solenoid - Discharges the object under test when a failure occurs in the object or when the power is turned off.
* Audible/Visual Alarms - The audible and visual alarms provide a clear indication of an overload situation or a go/no-go failure.
* Guard Circuit - Allows user to bypass unwanted stray leakage currents from being detected by the current meter.
* Output Connected Voltmeter - Ensures accurate voltage measurement regardless of output loading.
Model Number Suffix –A: 120V, 60 hz ;
Model Number Suffix –B: 220V, 50 hz
0-5 mA AC, 0-0.5/5/50/500/5000 uA DC
4.5" meter, ± 2% full scale accuracy
Adjustable from 0.5 mA to 5.5 mA
High Voltage Lead - 5 ft. long shielded high voltage test lead (RG58/U) with alligator clip
Ground Lead - 5 ft. long insulated test lead with alligator clip
21" w x 20" d x 11" h; (53 cm x 51 cm x 28 cm)
* Three Tests in One Unit - AC hipot, DC hipot and megohmmeter
* Meets Industry Specifications - Tests to many UL specifications as well as many CSA, VDE, IEC, MIL, IPC and other industry standards
* Easily Accessible Front Panel Controls - Provided for greater flexibility
* Rack Mountable - Easy installation into a 19" rack with cabinet removed
* NIST Traceability - All meters are traceable to The National Institute of Standards and Technology
