Lot of 280 tyco 103308-8 amp-latch 40-pin headers
Lot of 280 Tyco 103308-8 AMP-LATCH 40-Pin Headers

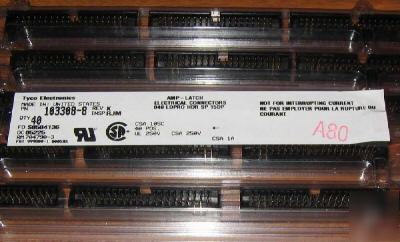

Status: New spare part and Picture is stock. Here the price is for 1 package of 280 units.
Product Features (Please use the Product Drawing for all design activity)
* Connector Type = Pin Headers
* PCB Mount Angle = Vertical
* PCB Retention Feature = No
* Mating Polarization Method = Center, Dual Polarizing Bar
* Mating Connector Lock = Without
* Ejection Latches = Without
* Post Size (mm [in]) = 0.64 [.025]
* Mating Polarization = With
* Shrouded End Dimension (mm [in]) = 3.81 [0.150]
* Current Rating (Amps.) = 1
* Insulation Resistance (M?) = 5,000
* Dielectric Withstanding Voltage (V) = 750
* Termination Post Length (mm [in]) = 3.05 [0.120]
* Solder Tail Plating = Tin-Lead over Nickel
* Centerline, Matrix (mm [in]) = 2.54 x 2.54 [.100 x .100]
* Contact Mating Area Plating = Gold (15), Gold Flash over Palladium Nickel
* Contact Material = Copper Alloy
* Contact Termination Area Plating = Tin-Lead
* Approved Standards = UL E28476, CSA LR7189
* Housing Material = Thermoplastic
* Housing Flammability Rating = UL 94V-0
* RoHS/ELV Compliance = ELV compliant, 5 of 6 Compliant
* Lead Free Solder Processes = Not suitable for lead free processing
* Temperature Rating = Standard
* Operating Temperature (°C) = -65 – +105
