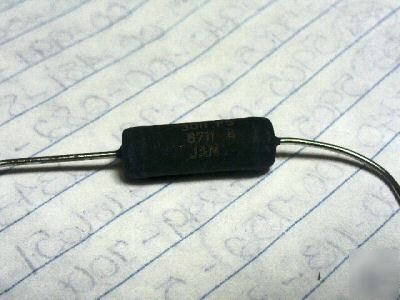

Resistor,fixed,wire wound,noninductive
ELECTRICAL RESISTANCE - 3.010 KILOHMS
RESISTANCE TOLERANCE IN PERCENT - -1.000 TO 1.000
POWER DISSIPATION RATING IN WATTS - 5.000 FREE AIR
AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER - 25.0
AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER - 275.0
TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS - -20.0 TO 20.0
TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS - -55.0 TO 275.0
INCLOSURE METHOD - ENCAPSULATED
STYLE DESIGNATOR - 14 AXIAL TERMINAL EACH END
BODY DIAMETER - 0.281 INCHES MINIMUM AND 0.343 INCHES MAXIMUM
BODY LENGTH - 0.813 INCHES MINIMUM AND 0.937 INCHES MAXIMUM
RELIABILITY INDICATOR - ESTABLISHED
RELIABILITY FAILURE RATE LEVEL IN PERCENT - 0.010
TERMINAL LENGTH - 1.500 INCHES MINIMUM
TEST DATA DOCUMENT - 81349-MIL-R-39007 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-R-39007/6 GOVERNMENT SPECIFICATION
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-R-39007/6
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - RWR74S3011FR
