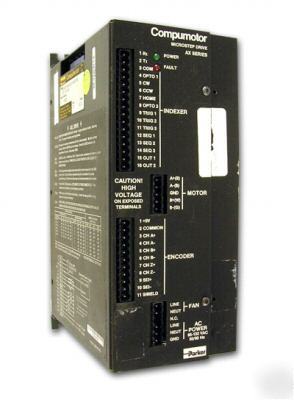

Compumotor axl AX83-135 drive
This is a refurbished unit that has been tested and comes with a 1 year warranty.
The AX Drive provides the following features:
System is available in the low-powered version
Drive resolution is 12,800 steps/revolution
Includes a full-featured RS-232C indexer with a subset of the X Series command language
Up to 8 drives can be daisy-chained on a single RS-232C port
2,000 characters of non-volatile memory can store up to 7 motion programs
Nine optically isolated inputs:
Two optically isolated programmable outputs
User-selectable micro-stepping waveforms for optimal smoothness
Automatic power-up motion sequence execution
Motion sequence selection via RS-232C or external switches
Sequence upload, download, and automatic verify
Incremental encoder interface is standard
23, 34, and 42 frame motors available with torques from 50 to 2,400 oz-in. 10 foot motor cables standard
The system offers high output voltage (170VDC) operation for optimum high-speed performance
95-135VAC, 50/60Hz input power
System is protected from short-circuit (phase-to-phase, but not phase-to-ground), brownout, and over-temperature
Microprocessor-controlled micro-stepping provides smooth operation over a wide range of speeds, and improved mid-frequency performance.
