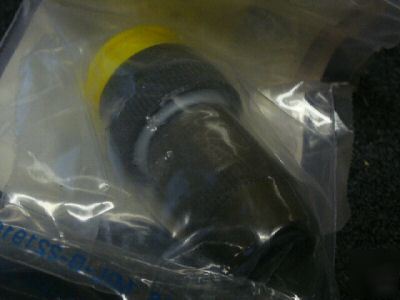

Connector,plug,electrical
BODY STYLE - 11A STRAIGHT SHAPE, INTERNAL COUPLING W/STRAIN RELIEF
BODY LENGTH - 1.848 INCHES MAXIMUM
OVERALL DIAMETER - 1.156 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - BAYONET LATCH
CONNECTOR CABLE STRAIN RELIEF METHOD - COMPRESSION NUT
CABLE ENTRANCE DIAMETER - 0.338 INCHES MINIMUM AND 0.442 INCHES MAXIMUM
SHELL MATERIAL - ALUMINUM ALLOY
SHELL SURFACE TREATMENT - CADMIUM AND CHROMATE
POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY
CONTACT POSITION ARRANGEMENT STYLE - ADAF 12-3 SINGLE MATING END
INSERT MATERIAL - RUBBER SINGLE MATING END
INCLUDED CONTACT QUANTITY - 3 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS - 22.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 500.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS - 700.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD AND SILVER SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - MOISTURE RESISTANT
III PRECIOUS MATERIAL - GOLD AND SILVER
III PRECIOUS MATERIAL AND WEIGHT - 0.003 GOLD GRAINS, TROY AND 0.003 SILVER GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER
DESIGN CONTROL REFERENCE - PT06W-12-3S
