Portescap 7,200 rpm motor - 6 vdc - escap 23L2R - swiss
Portescap 7,200 RPM Motor - 6 VDC - Escap 23L2R Precision Motor
* Brand new DC motor manufactured by Portescap
* Motor Model No.: Escap 23L2R 21 213P 15
* Full load torque: .55 oz - in
* Torque constant : 1.1 oz - in / A
* Terminal resistance: 3 ohms
* Motor begins to rotate at .1 VDC
* 9 segment precious metal alloy commutator
* Shaft dimensions: 10mm L x 3mm Diameter
* Motor dimensions (not including shaft): 34.1mm L x 23mm Diameter
* Motor’s face has 6 tapped holes ( M2 x 2.2) for easy mounting
* Comes with 5" long power leads
* Can be operated in either direction, simply reverse polarity
* Weight: 2.3 oz. - 70 grams
* High quality, precision made motor
* Manufactured in Switzerland
* For more information on the motor, please click this LINK to see the data sheet (PDF - 1.51 MB)

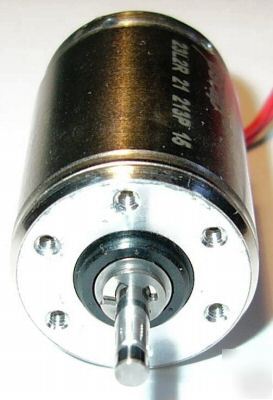

For closer detail of the motor, please click on the pictures below.
