Hp agilent 11612B K21 & K11 bias networks, 50 ghz

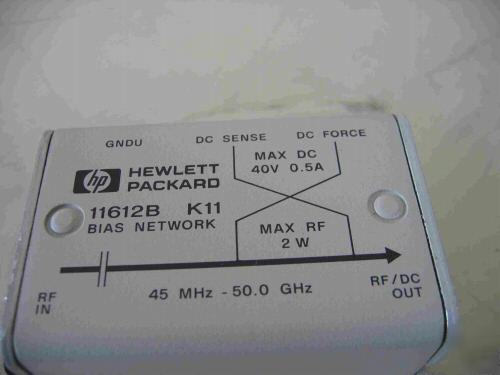

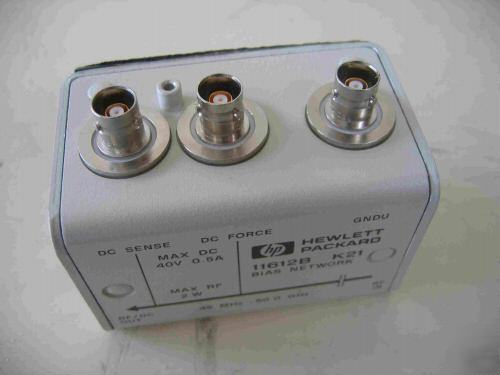

HP Agilent 11612B Option K21and 11612B Option K11 DC Bias Networks, 50 GHz
* Description: The Agilent 11612B Option K21 and 11612B Option K11 are 50 GHz Bias Networks with force/sense capability. The Option K21 provides a force connection to allow input of a current or voltage signal, and a sense connection to allow monitoring of voltage or current. A ground connection for application of an active ground is also provided. The force, sense, and ground are triaxial connectors. When used as part of the 85122A system, the bias network is intended to be connected to cables from the SMUs in the 4142B DC source/monitor. The force and sense connectors on the quadraxial cables from the SMUs are connected to the force and sense connectors on the bias network. The triaxial cable from the GNDU is connected to the ground connector on the bias network. The RF connectors on the bias network are 2.4 mm (f) connectors. The Agilent 11612B Option K21 is used at port 2 of the network analyzer and Option K11 is used at port 1. The RF cable from the network analyzer test port is connected to the RF IN port of the bias network. The RF OUT port of the bias network is connected to the probes, or the fixture, or the device itself. The HP Agilent 11612B has the following specifications:
* Frequency Range: 45 MHz to 50 GHz
* Insertion loss: 0.8 dB (<10 GHz), 1.5 dB (<30 GHz), 2.5 dB (<45 GHz), 3.2 dB (<50 GHz)
* Maximum SWR: 20 dB (<10 GHz), 15 dB (<20 GHz), 12 dB (<30 GHz), 10 dB (<50 GHz)
* Cosmetic Condition: Excellent
* Working Condition: Presumed Good but Untested
* Other Comments / Notes: Quadrax cables are available separately.
