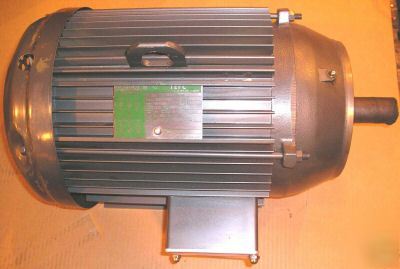

Lincoln model AF4S0TC54 20HP 3PH 50HZ motor
Sales tax will be added to purchases from California, Illinois, and Minnesota. Before paying, if you live in any of these states, please allow me to add the sales tax on to the invoice.
MOTOR - 15KW (20HP), 1500 RPM, 200/400V, 50 HZ, 3 PH,
SERVICE FACTOR IS 1.0 AT 50 HZ; 256TC FRAME, B DESIGN,
TEFC ENCLOSURE, C-FACE ASSEMBLY WITH MOUNTING FEET.

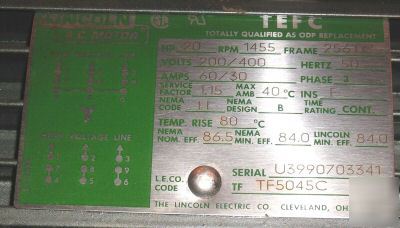

MOTOR NAMEPLATE MUST HAVE BOTH VOLTAGES AND BOTH AMPERAGES
LINCOLN, MODEL NO. AF4S20TC54, MEETS THE ABOVE REQUIREMENTS.

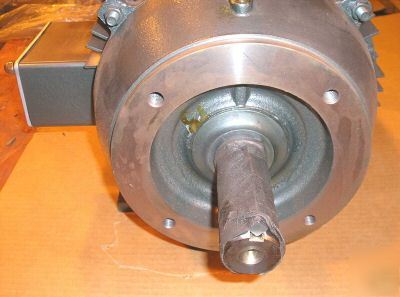

Shaft Diameter scales 1 5/8" with a 3/8" wide keyway and key.
There is a small area on the end there the paint is slightly scratched due to masking tape that was stuck on in for a long period of time.
This motor has been bench tested and found to be ok.
