Sti TL4024 series safety switch

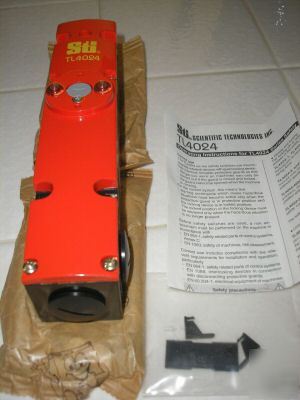

Sti Scientific Technologies TL4024 Series Safety Switch
this Item is in excellent cosmetic condition, Appears to be new but listing as used. Comes with NO manufactures warranty. This Switch List New for $246.64
Housing Material: Anodized die-cast
Env Protection to IEC 60529: IP67
Ambient Temperature:-20...+80c
Switching Principle: Depandent-action contact element
Contact material: Silver alloy,gold flashing
Conductor cross section: max. 1.5mm2
Rated insulation voltage: Ui=250V
Switching element utilization category to IEC 947-5-1: AC-15, 4A, 230V, DC-13, 4A, 24A
Min. switching current at 24V: 1mA
Short circuit protection:6A slow-blow
(Short Fuse): 10A quick-acting
Solenoid operating voltage UB(+10%,-15%) (TL4024-3/4-5: IB=2A Timp=250ms): AC/DC 24V,AC 110V, AC 230V
Operational Frequency max. for TL4024- 3/4/5: 2700/h
