Atlas copco (sem), AHR115A6-88S brushless servo motor
We have over 20 years experience in the supply and servicing of servo and automation equipment.

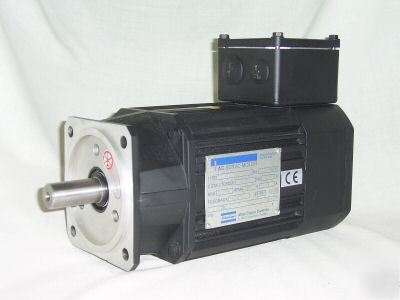

This AHR115A6-88S brushless servo motor is a 6 pole, sinusoidally wound motor made for Atlas Copco by SEM and is fitted with a resolver. The motor has a 530V winding.
The motor is rated at 3.7 Nm constant stall torque and maximum speed 6000rpm.
Connections are made via connection box. The resolver connector is included.
The motor flange measures 115 mm square, with a 19 mm shaft (No keyway), 95 mm diameter locating spigot and four mounting holes on a 115 mm PCD. Overall length is 270 mm and weight is about 7 kg.
This item appears to have been used as a test motor.
It has been tested and comes with 12 months warranty.
Please note that the price includes the VAT!
