Comtrol devicemaster rts 4-port DB9M terminal server

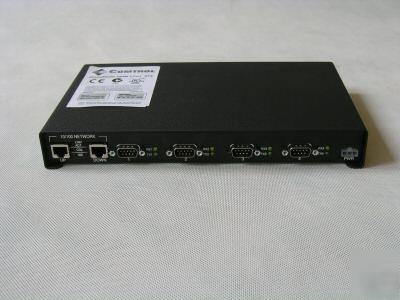

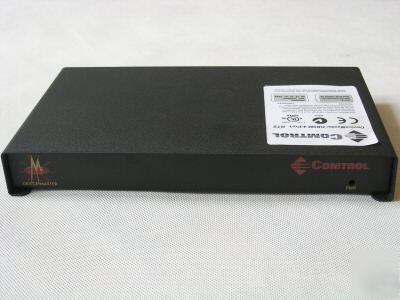

Comtrol DeviceMaster® UP 4-Port DB9M Ethernet Serial RTS Terminal Server.
Four port DB9M serial device server with 2-port Ethernet switch supporting serial to Industrial Ethernet protocols (EtherNet/IP, PROFINET, Modbus/TCP), COM/TTY, and TCP socket communication modes. Can accept power from any source in the 9 to 30 Volt DC range.
* DualConnectPlus (TM) Technology—simultaneously connect both serial and Ethernet devices to PLCs and/or applications. String, RFID, and barcode data filtering eliminates redundant data while extracting the RFID and barcode parameters.
* Provide PLC connectivity to standard serial devices with flashable protocol—support for EtherNet/IP, PROFINET, and Modbus/TCP
* Allen Bradley Supported PLC Models—ControlLogix, CompactLogix, FlexLogix, Softlogix, MicroLogix, PLC-5, and SLC 5/05 Models
* Siemens Supported PLCs—ET 400 and 300 S7 Models
* Modicon Supported PLC Models—TSX Premium, TSX Quantum, TSX Momentum, TSX Twido Ultra Compact, TSX Premium, TSX Micro, Compact, Atrium
* Wide -37° to 74°C Industrial Temperature Range
* Variable power input eliminates need for power converters
* PortVision® enterprise monitoring and management software—automatically monitors devices on the network and enables user to view status, update firmware and resolve issues remotely
HardwareEthernet Ports: 10/100 Base-TProcessor: ARM7 44MhzMemory: 8MB RAM, 4MB FlashEnclosure: Steel EAInstallation Method: panel mountableLED Indicators: Status, Ethernet Link/Activity, Collision, 100MB Ethernet, Rx/Tx Per PortIndustrial Ethernet ProtocolsEtherNet/IP® 4.0PROFINET I/O®PROFINET CBA®Modbus/TCP®TCP/IPEthernet SpecificationsNetwork Protocols: TCP/IP and UDP socket services, BOOP, TFTP, ICMP, ARP, SNMP (MIB-II), Telnet, HTTP, DHCP/RARP/PingNetwork Default ValuesIP Address: 192.168.250.250Subnet Mask: 255.255.0.0Gateway: 192.168.250.1Serial CommunicationsSoftware Selectable: RS-232, RS-422, RS-485Baud Rate: 50 to 230.4 KbpsConnector Type: (4) DB9 MaleFlow Control: RTS, CTS, DTR, DCD (hardware & software)Data ControlData Bits7 or 8ParityOdd, Even, NoneStop Bits1 or 2Electrical SpecificationsPower Consumption: 4.8 WattsPower Requirements: 9-30VDCSurge Protection: Ethernet components are rated to 1.5KV magnetic surge protection, in addition to the serial port ESD surge protection minimum of 15KV @ 200A for a duration of 1ns.Environmental SpecificationsOperating Temperature: -37 to 74° CStorage Temperature: -40 to 85° CHumidity (Non-Condensing)System On: 20% to 80%System Off: 8% to 80%Altitude: 0 to 10,000 FtHeat Output: 16.4 BTU/HrMTBF: 25 YearsRegulatory ApprovalsImmunityEN55024:IEC 1000-4-2/EN61000-4-2: ESD
IEC 1000-4-4/EN61000-4-4: Fast Transient
IEC 1000-4-5/EN61000-4-5: Surge
IEC 1000-4-6/EN61000-4-6: Conducted distrubance
IEC 1000-4-8/EN61000-4-8:Magnetic field
IEC 1000-4-11/EN61000-4-11: Dips and Voltage VariationsEmissionCanadian EMC requirements ICES-003:
FCC Part 15 Subpart B: Class A limitSafetyIEC 60950/EN60950
CSA C22.2 No. 60950/UL 60950, Third EditionRegulatory Approval MarksCE Mark, C-Tick, CUL/UL, and FCC Part 15: Subpart B: Class A
Manuals, Cables, Software, Original packing etc. are not included in the sale unless specifically referred to in the item description.
Illustration may be a stock photo and not the item for sale.
Please read the item description carefully.
If you have any problems let us know and we will do our best to rectify the problem or offer a refund.
