New phd tom thumb air cylinder slide 4" stroke 2" bore

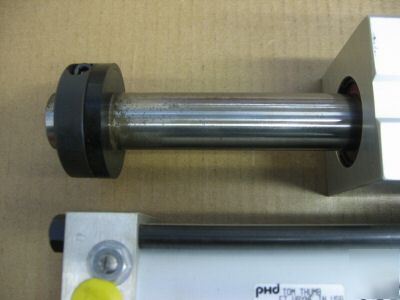

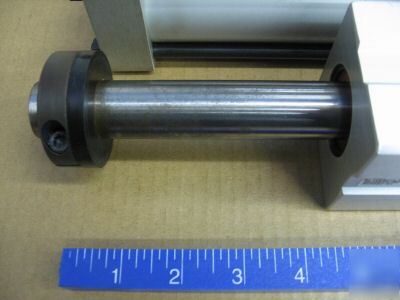

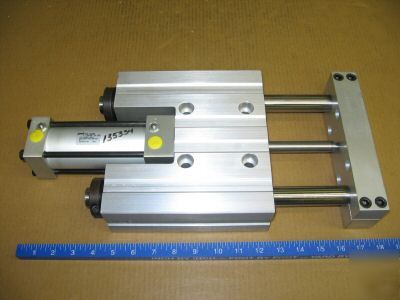

For your consideration... PHD Tom Thumb pneumatic cylinder slide assembly with part number SEC26X4-AE-DB-H4-M. The guide bars are 1" diameter, stroke is 4" and the bore looks to be at least 2" diameter. This weighs 26 lbs. The assembly is new but it has some potential problems. As shown in the 2nd and 3rd photos, there is some superficial surface rust on the tail side of the guide bars (visible when retracted). I have taken steel wool to them, lightly, and they feel like new but it is visible. I don't think it will cause any problems but you be the judge. The price is right. I do have multiples of these and similar ones- All of this size have similar rusting on the guides. Check them out in my other items in the pneumatic section. (CB-1)
As always, your complete happiness is guaranteed. Thanks
