Pakstat ® series l electronic thermostat controller
Pakstat ® Series l Electronic Thermostat Controller
Super Low Price on Pakstat ® Thermostat Controller

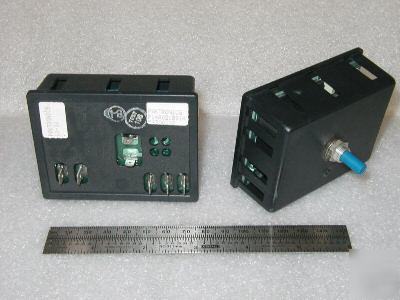

You are purchasing one new Paktronics part number P14A0318914 Electronic Thermostat Controller. This is the control unit only and does not include a thermocouple sensor or a scale plate. The basic specifications are:
* Input Voltage: 120 VAC ± 10%, 50/60 Hz. or208/240 VAC ± 10%, 50/60Hz.
* Stability: Better than ±1% of span or ±4°, whichever is greater.
* Static Deadband: ±1° (nominal)
* Operating Conditions: Ambient Temperature: 0°C to +70°C. Relative Humidity: 5% to 95%
* Output Options: Normally open (1 form A) relay contact.
* Relay Contact Ratings: 2 to 20 Amps at 12 to 240Vac, resistive load. (RC Snubber recommended with inductive loads). 1 to 20 Amps at 5 to 28 Vdc (Arc suppression required)
Factory data and specifications can be found at PAKTRONICS THERMOSTAT.
