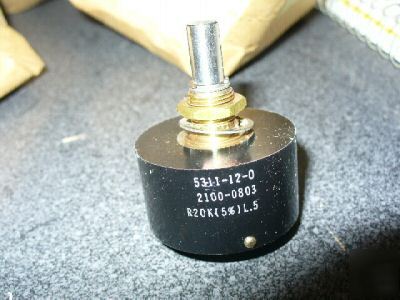

Resistor,variable,wire wound,nonprecision
ELECTRICAL RESISTANCE PER SECTION - 20.0 KILOHMS SINGLE SECTION
RESISTANCE TOLERANCE PER SECTION IN PERCENT - -5.0 TO 5.0 SINGLE SECTION
POWER DISSIPATION RATING PER SECTION IN WATTS - 2.0 FREE AIR SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER - 40.0 SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER - 125.0 SINGLE SECTION
BODY STYLE - 1B CYLINDRICAL BUSHING MOUNTED
BODY DIAMETER - 0.500 INCHES NOMINAL
BODY LENGTH - 1.688 INCHES NOMINAL
MOUNTING BUSHING LENGTH - 0.313 INCHES NOMINAL
SHAFT STYLE - 3C ROUND, SLOTTED
SHAFT DIAMETER - 0.250 INCHES NOMINAL
SHAFT LENGTH - 1.000 INCHES NOMINAL
ROTARY ACTUATOR TRAVEL IN ANGULAR DEG - 3600.0 NOMINAL
ACTUATOR TRAVEL CONTROL FEATURE - CONTINUOUS MOTION
MOUNTING METHOD - STANDARD BUSHING
SCREW THREAD SERIES DESIGNATOR - UNF
SCREW THREAD DIAMETER - 0.190 INCHES NOMINAL
SCREW THREAD QUANTITY PER INCH - 32.0
TERMINAL TYPE AND QUANTITY - 3 PIN
CENTER TO CENTER DISTANCE BETWEEN TERMINALS - 0.100 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN CENTER TERMINAL AND OUTSIDE TERMINAL - 0.200 INCHES NOMINAL
TERMINAL LENGTH - 1.000 INCHES NOMINAL
RELIABILITY INDICATOR - NOT ESTABLISHED
