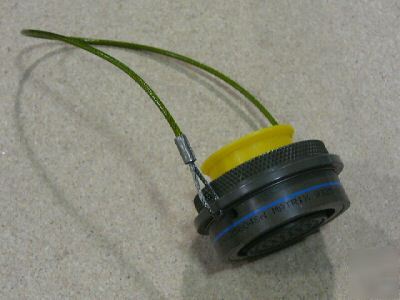

Connector,plug,electrical
BODY STYLE - 2A STRAIGHT SHAPE, EXTERNAL COUPLING
OVERALL LENGTH - 1.766 INCHES MAXIMUM
OVERALL DIAMETER - 2.703 INCHES MINIMUM
CONNECTOR LOCKING METHOD - BAYONET PIN
THREADED DEVICE TYPE - BACK SHELL
THREAD SERIES DESIGNATOR - UNEF
NOMINAL THREAD SIZE - 1.438 INCHES
SHELL MATERIAL - ALUMINUM ALLOY
POLARIZATION METHOD - KEY, MULTIPLE KEY GROOVE
CONTACT POSITION ARRANGEMENT STYLE - CKAH 24-4 SINGLE MATING END
INSERT MATERIAL - PLASTIC SINGLE MATING END
INCLUDED CONTACT QUANTITY - 8 SINGLE MATING END 1ST CONTACT GROUPING, 48 SINGLE MATING END 2ND CONTACT GROUPING
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS
INCLUDED CONTACT TYPE - ROUND SOCKET SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL TYPE - CRIMP SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL LOCATION - BACK SINGLE MATING END ALL CONTACT GROUPINGS
SPECIAL FEATURES - ITEM SUPPLIED WITH LANYARD RELEASE
III PRECIOUS MATERIAL AND WEIGHT - 0.088 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD
