Wasco TP700 series TP700-51W3C dual pressure switch
Wasco TP700 Series TP700-51W3C Dual Pressure Switch
This does not mean that the unit doesn’t work, only that we have not tested or checked it out.
This may also mean that we are not knowledgeable in that specific item.
Please call Monique Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions
between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time.
The Item may vary from picture as manufacture may change model appearance.
All information, including description, specifications and features are from a manufacturers
data sheet or manual and are subject to change without notice.
Meaning that all information included in the description, specifications and features
What you see is what you get! If it doesn’t show it you probably won’t get it!

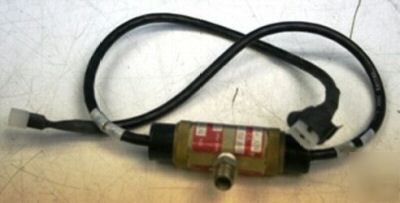

Wasco TP700 Series TP700-51W3C Dual Pressure Switch
* Serial Number: 15019-A 8/96
* Stainless Steel Capsule Type Sensor
* Excellent Accuracy and Repeatability
* Factory Set of Factory Set and Locked
* The TP700 Series is a rugged and reliable low to medium miniature dual pressure switch with excellent sensitivity, repeatability and set-point tolerance. Utilizing one pressure port, two (2) electrical switches may be set with out regard to one another, as long as they are set within the set point range of the sensor. This offers the possibility to set for redundancy or any pressure difference within the range.
* Non-Wetted Materials: Lock ring – Steel, Electric switch housing – Steel, Plastic parts – Nylon or PVC
* Wetted Materials: Capsule – 17-7PH, Seal-O-Ring – Standard BUNA N, Locking compound – Loctite #277, Body – Steel, Zinc Chromate Finish
* Pressure Switch Adjustment: This model may be adjusted by loosening the lock ring and turning the electric switch housing clockwise to lower set point, counter clockwise to raise the set point. Holding the electric switch housing in position, tighten the lock ring and check the pressure setting.
* Setting Options: Switches are normally supplied field adjustable.
* Temperature Range: -65 Degrees Fahrenheit to +225 Degrees Fahrenheit, a slight change up to 2% in the set point ma occur below -10 Degrees Fahrenheit and above +125 Degrees Fahrenheit.
* Cycle Rate-Sensor and Electrical Switch: Not to exceed 22 CPM
* Weight: Approximately 8 ounces
* Pressure Connection: 1/8 NPT female standard
* Set Point Tolerance: ± 2.0
