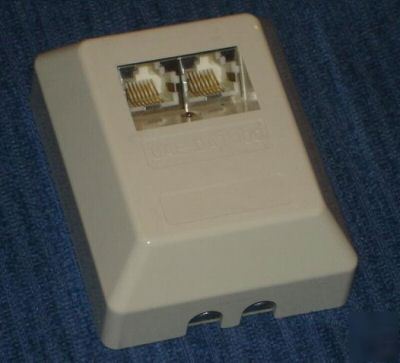

Btr telecom e-dat ethernet 2X RJ45 – cat. 6 / class e
Photo Sharing and Video Hosting at Photobucket
The item is new in box, in mint conditions, factory labeled;
Made in Germany, original packing;
Retail price is approx. US$ 76.00 / each;
There are ten (10) pieces available (!).

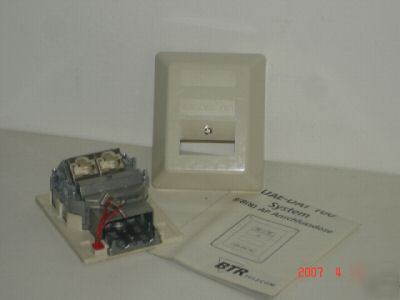

E-DAT – Termination System – Wall Outlet 8/8(8)
* termination unit with two 8 pole RJ45 ports;
* 45 degree downward angler RJ45 port;
* installation friendly termination of the 2 to 4 pair data lines to BTR ID connectors (AWG 22 – 24), wire color identification per TIA/EIA 568A;
* pin/pair assignments per ISO/IEC 11801/EN 50173-1;
* strain relief by cable ties at the E-DAT module;
* captive connectivity spring for cable shield;
* label window for port identification;
* cat.6/Class E Link performance per ISO/IEC 11801:9/2002 and EN50173-1:2002;
* EMI proof pre EN 55022-B, EN 50082-1;
* matching per DIN 49075 T2;
* integrated dust protection cover;
* color of face plate pearl white RAL 1013;
* compatible with central design plates of switch lines of leading manufacturers.
Photo Sharing and Video Hosting at Photobucket
Photo Sharing and Video Hosting at Photobucket
Photo Sharing and Video Hosting at Photobucket
Photo Sharing and Video Hosting at Photobucket
Photo Sharing and Video Hosting at Photobucket
United States: US$ 16.00 Priority Mail / US$ 35.00 EMS
Europe: US$ 17.00 Priority Mail / US$ 38.00 EMS
Australia: US$ 22.00 Priority Mail / US$ 40.00 EMS
Canada: US$ 16.00 Priority Mail / US4 35.00 EMS
Japan: US$ 22.00 Priority Mail / US$ 40.00 EMS
Others: please e-mail us at bra-****@hotmail.com for S&H quotation.
We encourage you to ask any further questions not covered by this add.
Please e-mail us at bra-****@hotmal.com
