New rotary table+air-motor drive+automation accessories

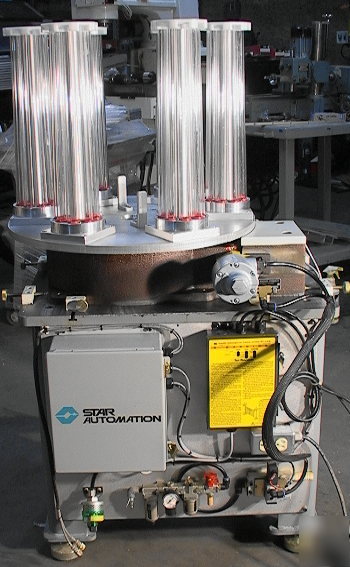

Jackson Machine Products T-18-6CWS-D Rotary Table
with air-motor drive and other accessories.
This unit was originally put together by Star Automation as part of a robotic work-cell for packaging contact lenses. Each of the 6 transparent columns has 8 tubes that the contact lenses got stacked in. A retoreflective optical sensor and limit switches kept track of where things were.
The following link is the website for the company that put this unit together (not specific to this item).
Jackson Machine Products T-18-6CWS-D
We have not found a website for Jackson.
A couple of switches can be seen in the image above. The images below show the retro-reflectors (these may have determined if there were contact lenses in the tubes) -we don't know what happened to the sensor that went to these.
The STI 70027 controller shown above might be related to the retro reflective sensor. Its label is shown below. There are cords for power and that go to sensors in the 2nd image below but no sensor.
The 3/4" thick aluminum disk mounted on top the 18" rotary table is about 25" in diameter.
The lens tubes are just under 20" tall.
The top of the aluminum mounting disk is about 35.5 inches off the floor.
There are numerous adjustment knobs for fine tuning the placement of the rotary table on top of the 1" thick machined table top.
Overall footprint is about 29 by 33 inches. Note the adjustable foot pad in the last image.
Might be just what you need for your serious rotary table application.
Condition looks unused as shown above. This unit was built for an automated production line that never got put to use. The new owners of the contact lens company canceled the automated production line project before it got set up.
