Plc thermocouple input module (F4-08THM)

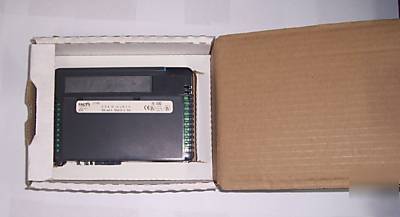

8 Channels Thermocouple Module F4-08THM
* Differential Input Ranges* Type J -190 to 760°C -310 to 1400°F Type E -210 to 1000°C -346 to 1832°F Type K -150 to 1372°C -238 to 2502°F Type R 65 to 1768°C 149 to 3214°F Type S 65 to 1768°C 149 to 3214°F Type T -230 to 400°C -382 to 752°F Type B 529 to 1820°C 984 to 3308°F Type N -70 to 1300°C -94 to 2372°F Type C 65 to 2320°C 149 to 4208°F
* Common Mode Rejection 90dB min. @ DC, 150dB min. @ 50/60Hz.
* Absolute Maximum Ratings Fault-protected inputs to ± 50VDC
* Display Resolution ± 0.1°C or ± 0.1°F
* Accuracy vs. Temperature ± 5ppm/°C
* Maximum full scale calibration (including maximum offset change) Cold Junction Compensation Automatic PLC Update Rate 8 channels per scan max
* Conversion Time 100ms per channel Digital Inputs 16 binary data bits, 2 channel ID bits, 4 diagnostic bits Warm-Up Time 30 minutes typically ± 1°C
* Repeatability Input Points Required 32 points (X)
* Input module Linearity Error (End to End) ± .05°C maximum, ± .01°C typical
* Terminal Type (included) Removable (D4-16IOCON)
* External Power Supply 60mA maximum, 18 to 26.4VDC
* Maximum Inaccuracy ± 3°C (excluding thermocouple error)
* Power Budget Requirements 110mA max., 5VDC (supplied to base)
* Voltage Input Operating Temperature 0° to 60°C (32° to 140°F)
* Voltage Ranges 0-5V, ± 5V, 0-156.25mV, ± 156.25mVDC
* Storage Temperature -20° to 70°C (-4° to 158°F)
* Resolution 16 bit (1 in 65535)
* Relative Humidity 5 to 95% (non-condensing)
* Full Scale Calibration Error (Offset error Included) ± 13 counts typical, ± 33 maximum Environmental Air No corrosive gases permitted Offset Calibration Error ± 1 count maximum, @ 0V input Vibration MIL STD 810C 514.2 Linearity Error (End to End) ± 1 count maximum Shock MIL STD 810C 516.2
* Maximum Inaccuracy ± 02% @ 25°C (77°F)
* Noise Immunity NEMA ICS3-304 NOTE 1: Terminate shields at the respective signal source NOTE 2: Leave unused channels open (no connection) *Thermocouple type is selected by setting internal jumpers
