RS232 to 3~5V ttl converter cable/lead basic/pic/gps

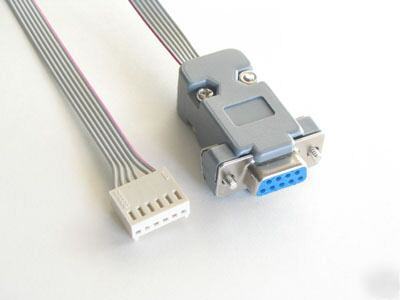

RS232 to 3~5 Volt TTL Signal Converter Cable
This cable has a standard DB9 female RS232 connector and can be connected to a standard PC COM port or any other terminal with a straight thru extension cable. The 6-pin header connects to any micro controller board that requires serial I/O. The micro controller board provides operating voltage (3.3 to 5 volts) to the adapter.
This module can work with Microchip PICs, Basic Stamps, Atoms, and any other microcontroller when you need TTL communication via RS232.
* RS-232 Bus-Pin ESD Protection Exceeds ±15 kV Using Human-Body Model (HBM)
* Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards
* Operates With 3V to 5.5V VCC Supply
* Two Drivers and Two Receivers
* Low Supply Current . . . 300 μA Typical
* Accepts 5V Logic Input With 3.3V Supply
* Five capacitors enclosed noise filtering
* Two handshaking signals RTS/CTS
* High quality double sided printed circuit board with silk-screen
* Set your Real Time Clock project via RS-232
* Read values and send them to the PC
* Turn your PC into a thermometer or voltmeter using Visual Basic or other software.
* Control a motor, lights, sensors or what ever with your PC.
* As a microcontroller bootloader interface
