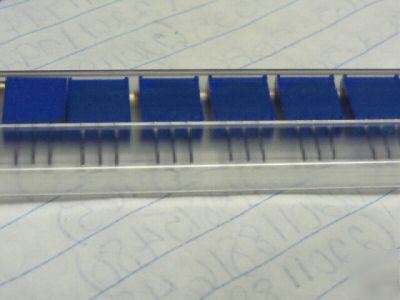

Resistor,variable,wire wound,nonprecision
ELECTRICAL RESISTANCE PER SECTION - 20.0 KILOHMS SINGLE SECTION
RESISTANCE TOLERANCE PER SECTION IN PERCENT - -10.0 TO 10.0 SINGLE SECTION
STANDARD TAPER CURVE PER SECTION - A SINGLE SECTION
POWER DISSIPATION RATING PER SECTION IN WATTS - 0.5 FREE AIR SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER - 85.0 SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER - 125.0 SINGLE SECTION
BODY LENGTH - 0.360 INCHES MINIMUM AND 0.390 INCHES MAXIMUM
BODY WIDTH - 0.200 INCHES MAXIMUM
BODY HEIGHT - 0.419 INCHES MAXIMUM
SHAFT STYLE - 3C ROUND, SLOTTED
SHAFT DIAMETER - ANY ACCEPTABLE
SHAFT LENGTH - 0.070 INCHES MAXIMUM
TERMINAL TYPE AND QUANTITY - 3 PIN
CENTER TO CENTER DISTANCE BETWEEN TERMINALS - 0.190 INCHES MINIMUM AND 0.210 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN CENTER TERMINAL AND OUTSIDE TERMINAL - 0.095 INCHES MINIMUM AND 0.105 INCHES MAXIMUM
TERMINAL LENGTH - 0.300 INCHES MINIMUM
TERMINAL LOCATION - LOWER ADJACENT SIDE SINGLE ROW
RELIABILITY INDICATOR - NOT ESTABLISHED
III OVERALL LENGTH - 0.360 INCHES MINIMUM AND 0.460 INCHES MAXIMUM
III OVERALL HEIGHT - 0.419 INCHES MAXIMUM
III OVERALL WIDTH - 0.200 INCHES MAXIMUM
