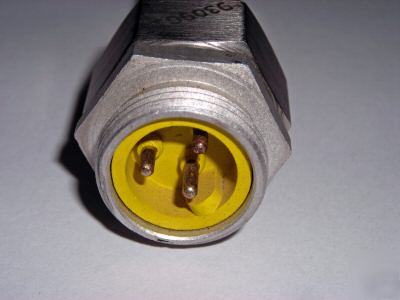

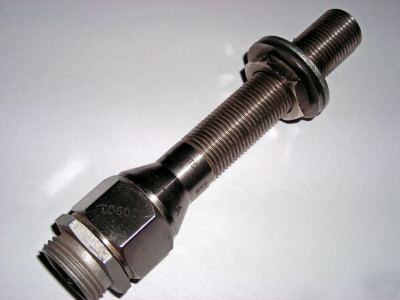

Go switch model 75 leverless limit, proximity switch
Model 75 Leverless Limit Switch
Repeatability: .002" (.05mm) typical
Differential: Approx. .020" (.51 mm)
Operating Temperature: -40O to 221OF
(-40O to 105OC). HiTemp to 400OF (204OC)
5/8" (16 mm) dia. x 45/16" (110 mm)
long with 5/8"-18 UNF x 213/16"
-400 to 2210F operating temperature
Suitable for Zone 0, 1, or 2 explosion proof
-400 to 4000F high temperature
Contact Material: Palladium silver with
Target Material: Ferrous steel
sawtooth surface configuration
.100†(2.5 mm) end sensing (2,000 PSI)
.072†(1.8 mm) end sensing (5,000 PSI)
.060†(1.5 mm) end sensing (10,000 PSI)
Sensing Range with Target Magnet:
3 Standard sensing - approx. .100"
(3 mm) end sensing (must be 2 or 6)
(Enclosure must be 3 and Approvals
Single Pole Double Throw (Form C)
(Enclosure must be 4 and Approvals
(See Accessories for External Target Magnets)
