Atmel avr prototype board ATMEGA8 ATMEGA88

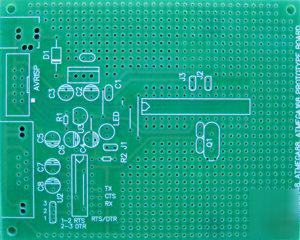

AVR-P28 AVR MICROCONTROLLER PROTOTYPE BOARD FOR 28 PIN DEVICES WITH STKxxx COMPATIBLE 10 PIN ICSP
* STK200 compatible ICSP 5x2 pin connector for in-circuit programming with AVR-PG1 or AVR-PG2
* RS232 Tx, Rx interface with MAX232 IC
* Quartz crystall oscilator circuit
* reset (based on IC ZM33064 or similar)
* status LED connected to PC5 via removable jumper
* DIL28 microcontroller socket
* +5V power supply based on 7805
* extension pin headers for each uC pin
* four mounting holes 3.3 mm (0.13")
* FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
* dimensions 100x80 mm (3.9x3.15")
Supported devices: AVR in DIP28 (Atmega8, ATmega48, ATmega88, ATmega168...)
2,2mkF x 16V (Polarity of capasitors: + pin square pad, - pin round pad)
