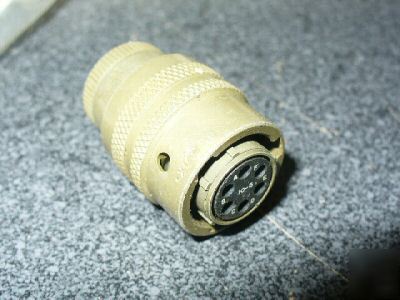

Connector,plug,electrical
OVERALL LENGTH - 1.328 INCHES NOMINAL
OVERALL DIAMETER - 0.859 INCHES NOMINAL
CONNECTOR LOCKING METHOD - BAYONET LATCH
SHELL MATERIAL - ALUMINUM ALLOY
POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY
CONTACT POSITION ARRANGEMENT STYLE - AGAB 10-6 SINGLE MATING END
INSERT MATERIAL - RUBBER SYNTHETIC SINGLE MATING END
INCLUDED CONTACT QUANTITY - 6 SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS - 7.5 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 500.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS - 700.0 SINGLE MATING END SINGLE CONTACT GROUPING
DESIGN CONTROL REFERENCE - PT06SE10-6SW
