New 3 motor coupling with 14MM id on both sides /cnc

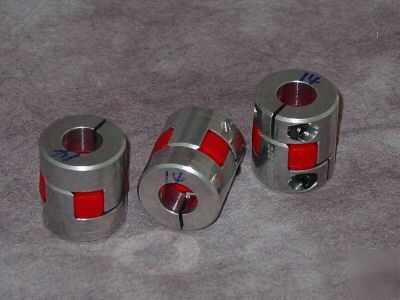

You Get 3 NEW! Motor Couplings for NEMA 34 Motors.
Good for coupling Stepper motors or Servo Motors to ball screws or lead screws.
* This allow for reversing directions and transfering the torque safely. Some of the features of the motor coupling is the impact buffering, parallel stress absorption, deviating angle recovery, axial phase difference and the improved capability for systematic locomotion.
* I.D. = 14mm (.550") Both sides
* Max Rotational frequency = 10200rpm
* Rated Torque = 12.5 N.m (1770.15 Ounce Inches)
* Max Torque = 25 N.m (3540.30 Ounce Inches)
* Static torsion spring stiffness = 170.9 N.m/rad
* Dynamic torsion spring stiffmess = 505 N.m/rad
