> Toko LTF3216L-2R4G 2.5GHZ lowpass filter 3.2X1.6 100PCS
Toko LTF3216L-2R4G 2.5GHZ lowpass filter 3.2X1.6 100PCS

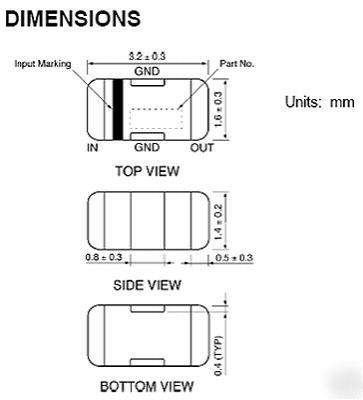

3.2mm x 1.6mm (1206 PKG) 2.5GHz 3W MULTILAYER SMT LOWPASS FILTER
.6dB INSERTION LOSS * 50 OHM INPUT/OUTPUT * 30dB ATTENUATION 2xFc
SELLING 2EA 100PC LOTS SEPERATLY

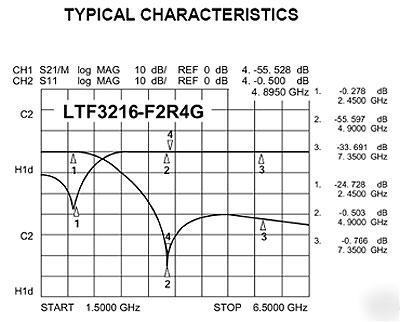

UP FOR SALE ARE 2EA ROLLS OF 100PCS EACH BOTH BEING SOLD SEPERATLY OF A TOKO 1206 PACKAGED 2.5GHz LOWPASS FILTERWITH .6dB INSERTION LOSS & A MINIMUM OF 30dB ATTENUATION A 2X CENTER FREQUENCY. THIS IS MORE THEN ENOUGH REDUCTIONOF UNWANTED HARMONICS TO EVEN KEEP THE FCC HAPPY PLUS THEY CAN HANDLE UP TO 3 WATTS OF RF DRIVE WHICH MAKES THEPART USEFULL AT JUST ABOUT ANY STAGE OF YOUR VCO'S OUTPUT AMPLIFIER SECTIONS, THOUGH USUALLY BEST IF IT IS PLACEDBEFORE YOU SPLIT OFF THE REQUIRED SIGNAL FOR YOUR PRESCALAR ELSE IT HAS TO DEAL WITH THE UNWANTED HARMONICS. WEALL KNOW THAT SENDING CRAP TO THE PRESCALAR ONLY DELAYS THE LOCK TIME. THIESE PARTS WERE ONCE USED BY US IN ALL OF OUR VCO/PLL DESIGNS WE DID. THEY EVEN WORK GREAT WITH A LMX2326 & AMAXIM MAX2751 VCO IC. WE PLACED THE FILTER AFTER THE 1ST AMPLIFIER STAGE AFTER THE VCO'S OUTPUT THEN SPLIT OFF APORTION OF THE SIGNAL FOR THE PLL. THESE BABIES IF WE STILL NEEDED THEM WOULD NEVER EVER BE UP HERE FOR SALE BUTAS MY UNCLE IS NO LONGER DOING ELECTRONICS THEY ARE NOW EXCESS TO US! THERE ARE ALOT OF GREAT USES FOR THIS TYPE OF PART PLUS A LOT OF DESIGNS US THEM, WE LEAVE THE IDEA'S TO YOU! LTF3216L-F2R4G DATASHEET
THANKS FOR LOOKING AND GOOD LUCK!
