Vici valco a 45 9-96 air actuator & cheminert C2-2348A

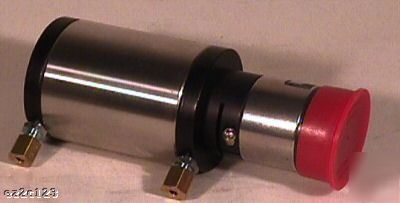

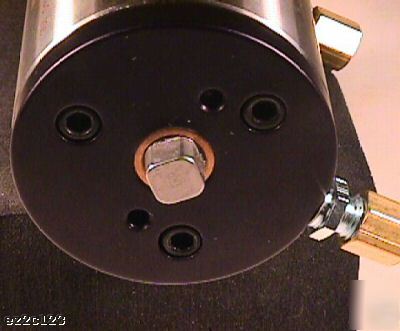

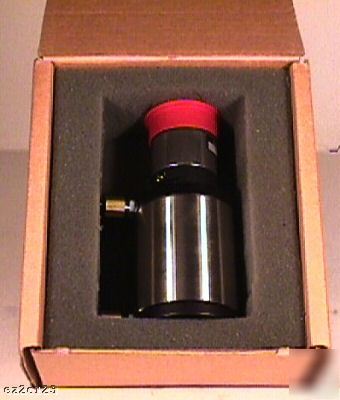

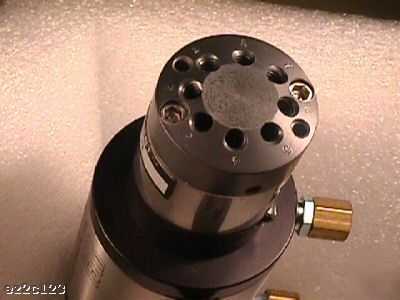

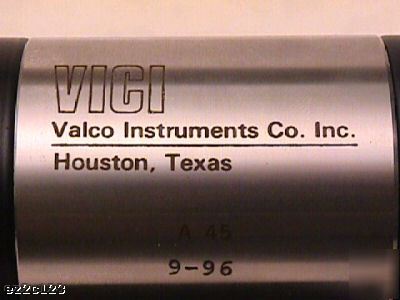

NEW VICI VALCO A 45 9-96 AIR ACTUATOR & CHEMINERT PN C2-2348A. Standard temp two position actuator, 45 degree, 8 port valve with close mount hardware. Weighs 1 lb 7.4 oz. 1/8 inch input / output air & valve. For additional detailed information please see the manufacturer's website. .
This Valco air actuator offers reliable, long-term performance under the most demanding conditions. Its low gas consumption and it's lightweight, compact construction make the air actuator suitable for aerospace flight hardware applications as well as laboratory and process applications.
The standard air actuator is rated for use at temperatures up to 70°C. Generally the valves which will be in ovens or heated zones require a standoff assembly, which locates the air actuator out of the heated zone and supports both the valve and actuator, it is not recommended for use below 50°C.
Typical actuation pressure is 40-50 psig, but up to 80 psig may be used without damaging the valve or the air actuator. The ideal air pressure will switch the valve in 1/3 to 1/2 second. Bottled instrument air or nitrogen is recommended. If plant air from compressors must be used, an oil separator and water dryer are required

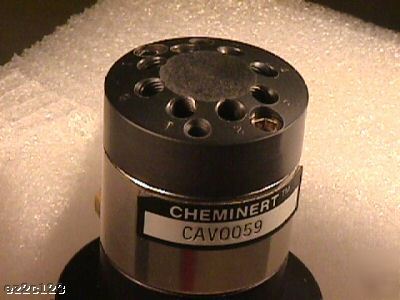

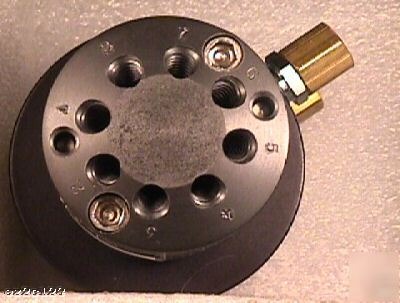

The Cheminert valve design involves a flat rotor which is engraved with slots to connect the ports and a stator which is held against the rotor at a constant, preset force. When repairs are required, just take out two or three screws, replace the rotor, and put the screws back in and tighten them. No adjustments are possible, or required. Other advantages of the design include easy panel mounting, low actuating torque, and compact size. The Cheminert design offers configurations for basic flow switching, sample injection, and stream selection as well as others!
