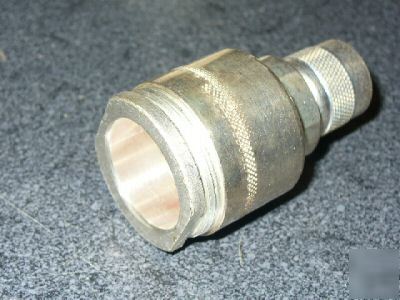

Connector,plug,electrical
BODY STYLE - 5D STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH - 2.250 INCHES NOMINAL
OVERALL DIAMETER - 1.328 INCHES NOMINAL
CONNECTOR LOCKING METHOD - BAYONET LATCH
CABLE ENTRANCE DIAMETER - 0.250 INCHES NOMINAL
SHELL SURFACE TREATMENT - GOLD
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204,TYPE 1,CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE
CONTACT POSITION ARRANGEMENT STYLE - ABCE N SINGLE MATING END
INCLUDED CONTACT QUANTITY - 1 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - COAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING
RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS - 50.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER AND CHROMIUM SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL DOCUMENT AND CLASSIFICATION - QQ-C-525,COMP 2 FED SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - MOISTURE RESISTANT
TEST DATA DOCUMENT - 81349-MIL-C-39012 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-C-39012/6 GOVERNMENT SPECIFICATION
III PRECIOUS MATERIAL AND WEIGHT - 0.005 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACE GOLD
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MILC39012-6
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - M39012/06-0005
