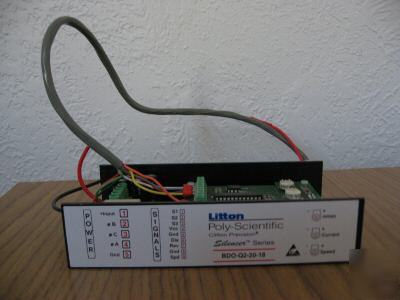

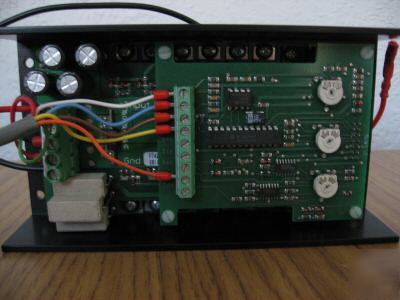

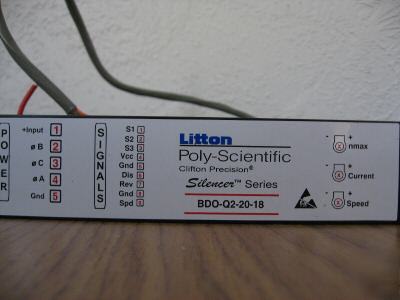

> Moog/litton poly-sci silencer bdo-Q2-20-18 lot of 15
Moog/litton poly-sci silencer bdo-Q2-20-18 lot of 15
â„¢ Series Brushless Controllers
USED but pulled from a Working Environment
Control of Brushless Motors for:
• Packaging and printing products
• Industrial automation equipment
• Office automation and equipment
• 2-quadrant speed controllers forbrushless motors
• Motor speed is set by either an internal or external potentiometer
• Motor rotation direction can be present by the direction control input; the controller output stage can be activated and deactivated by the disable control input
• Maximum constant current can be adjusted via an on-board potentiometer
• Internal thermal cutoff prevents heat overload
• Very high efficiency is achieved by using POWER-MOS-FET technology in the controller output stage
• Operating temperatures from -10 to 45°C and storage temperatures from -40 to 85°C
â„¢ brushless controllers are available in a variety of voltage and current ratings. Their compact packaging minimizes space demands. All controllers have generous terminal blocks to facilitate ease of wiring.
Silencer drives are compatible with Silencer Series Brushless DC Motors. Silencer motors are available in sizes 12, 17, 23, 28, 34 and 42 in standard frames with 1.2" to 4.15" diameters. They offer speeds up to 20,000 rpm and continuous torques ranging from 1.2 to 519 oz-in. Standard options include gearheads, resolvers and encoders.
If you have questions about Silencer drives or would like to speak to an applications engineer, please call us or visit our web site.
• Compact packaging minimizes space demands
• Matched drives and motors from a single supplier
• Complete system testing provides high reliability
• Terminal block connections for ease of wiring
• Multiple methods of speed control
Moog Components Group • 125
Operating voltage -+input and Gnd 12-28 VDC 20-50 VDC 12-28 VDC 20-50 VDC
Maximum constant current (adjustable) 18 A 18 A 40 A 40 A
• Direction of rotation – (REV) open collector / TTL / CMOS / switch
• Disable output stage – (DIS) open collector / TTL / CMOS / switch
Weight 12.91 oz 12.91 oz 13.76 oz 13.76 oz
Dimensions - (L x W x H) - 6.69 x 3.54 x 1.73 in (170 x 90 x 44 mm)
Mounting - 4 x M4 with a distance between holes of 6.30 x 2.52 in (160 x 64 mm)
Diameter - 4.5 mm - (4) places - M4 screw
Terminal # Nomenclature Description
4 VCC Supply for Hall Switches
9 SPD Set value input for speed
Terminal # Nomenclature Description
1 Positive Input Positive Supply Voltage
