Gear box, 5 gear reducing mechanism, concentric drive


Plastic & metal 5 gear reducing mechanism
Gear Head Assembly 1.8" diameter, with 5 gears.
Output shaft gear and the 3 slowest gears made of metal (highest force), 2 fastest gears made of plastic.
Imprinted speed 2 RPM (but this could vary based on motor)

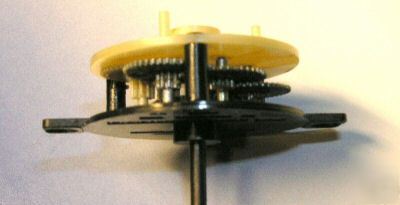

Fastest gear exposed inside a cup (where the motor pinion should go), see pic.
It's diameter appears to be 5/8" between teeth tops, and have about 40 teeth.
Cup diameter is just over 1/4"
All other gears arranged along the outer rim, and each is exposed at the edge for possible driving. They all seem to have the same diametral pitch.
Output axle 1/8" dia. shaped into a hook. has 0.8" straight portion.
Output shaft is concentric with input shaft.
New, made for rotating promotional displays hung from the ceiling.
Can be delivered with hook portion of shaft sawed off.
US: $3.75 Canada: $4.50 International: $5.50 Lowest cost option.
2-nd item: S&H 75% less than first (or 25% of first)
item nr 3-5: S&H 80% less than first (or 20% of first)
item nr 6-10: S&H 90% less than first (or 10% of first)
