New window willem programmer pic mcs flash bios PCB5.5C
* Parrellel Willem Universal Programmer Set (PCB5.5C version)
* Plus one Free Microchip PIC 12F629
At A Glance on PCB5.5C Features
* Newest & improved design for parrellel willem universal programmer
* Hardware version: PCB5.5C Parrellel/LPT Willem
* Replace mechnical DIP switch and jumpers by electronic switch
* Eliminate jumpers on board
* On board MCU ATxxx for stable performance
* Build-in FWH/LPC, PLCC32 adapters & PIC sockets on the board
* Supports Win9X, Me, XP, NT and 2000 operating systems
TSOP, MCS-51+, PSOP44, PIC +, PLCC44, PLCC32 and etc
* Latest software: 0.99KB (more ICs added, details refer to the support list)

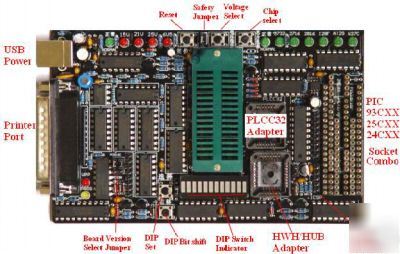

* One Parrellel Willem Programmer Board with 32pin ZIF (PCB5.5C version)
* One USB cable for power supply
* One DB25 data cable for data communication
* One Installation CD with latest software bundle & quick start guide
* One free chip (bonus item)
The latest software can be downloaded from MCUmall com website.
* Copier, Fax machine, printer main board maintaining and reparing
* Car memory device code reading, writing
* VCD,DVD,Color TV maintaining and reparing
* Neon Light Controller code writing
* Supported by MCUmall Electronics Inc. Canada
We accept return-for-refund or return-for-exchange
Have a quesiton? Please email: ****@mcumall.com.
Support forum: http:// /forum/default.asp
* Multiple Currency Accepted:US$/Canadian$/Euro/GBP
payabe to MCUmall Electronics Inc.
27C64, 27C128, 27C256, 27C512, 27C010, 27C020, 27C040,27C1001
2716(Vpp25V),2732, (adapter DIP24)
2764, 27128, 27256, 27512, 27010,
Vpp12.5V (21Vpp Modify Circuit)
28C65,28C64, 28C128, 28C256,28C512, 28C010, 28C020, 28C040
(Adapter or Jumper) 28C16,XLS2816 (DIP24)
28F64, 28F128, 28F256, 28F512,28F010, 28F020
MX26C1000, MX26C2000, MX28F1000, MX28F2000
Am28F256A, Am28F512A, Am28F010A, Am28F020A - intel -
i28F001BX, 28F004, 28F008, 28F016
29F64, 29F128,29F256, 29F512,29F010, 29F020, 29F040, 29F080
29F001,29F002, 29F004, 29F008, 29F016, 29F032
24C02,24C04,24C08,24C16, 85C72, 85C82, 85C92
24C32,24C64,24C128,24C256,24C512
<- Data 8bit -> (pin 6 ->ORG. [Schematic connect to GND])
93C06, 93C46, 93LC46, 93C56, 93C57,
93C66, 93C76, 93C86 (8bit), AT59C11, AT59C22, AT59C13
CAT35C102, CAT35C104, CAT35C108 (pullup pin7)
<-Data 16bit-> (pin 6 ->NC [No Connect])
93C06A ,93C46X,93C56,93C66,93C76,93C86 (NS)
16C84, 16F84, 16F84A ,16F627/16F628
12C508/A, 12C509/A, 12CE518, 12CE519, 16C505
16C620 16C621, 16C622, 16CE623, 16CE624, 16CE625, 16C710/711
16F870, 16F871, 16F872, 16F873, 16F874, 16F876, 16F877
PIC16F873A, PIC16F874A, PIC16F876A, PIC16F877A
AT29C256, AT29C512,AT29C010A, AT29C020, AT29C040,AT29C040A
W29EE512,W29EE011, W29EE012, W29C020(128),W29C040
Ver 0.992 up(DOS). Can run under win9x
(disable prog. CPUIdle or CPUCool)
Command seq. 5555/AA, 2AAA/55, 5555/A0
AT49F512, AT49F010, AT49F020, AT49F040
SST39SF010, SST3S9F020 ,SST39SF040
Command seq. 555/AA, 2AA/55, 555/A0
Am29F512, Am29F010, Am29F020, Am29F040,HY29F080
Serial Peripheral Interface (SPI)
[Atmel] AT25010,020, 040 (A8-A0)
AT25080, 160, 320, 640, 128, 256 (A15-A0)
[ST] W95010....256, Microchip 25x010 - 25x640
25C080,25C160,25C320,25C640,25C128,25C256,25C512
- CAT64LCxxx (16bit DATA IN/OUT) use Socket 93Cxxx
CAT64LC010, CAT64LC020, CAT64LC040
DS1220,DS1225Y, DS1230Y/AB, DS1245Y/AB, DS1249Y/AB
6116, 6264, 62256, 62512, 628128
W27E512, W27E010, W27C010, W27C020, W27C040
SST27SF256, SST27SF512, SST27SF010, SST27SF020
Vcc = 3.3-3.6V SST37VF512, SST37VF010, SST37VF020, SST37VF040
AT89S8252 (8K+2K), AT89S53, AT89LS8252,AT89LS53
AT89C1051,AT89C2051,AT89C4051 (20pin)
AT89C51RC (32KB), AT89C55WD (6.2V)
i8xC51,i8xC52,i8xC54,i8xC58 (tWP = 100uS*25 Pulse)
(read,write,erase,verify,checkempty,Lockbits ,Fusebits) [Flash memory/EEPROM]
90S2333, 90S4433, 90S4414, 90S8515, 90S4434, 90S8535
Function Lockbit read AT90S2313 Errata Sheet.pdf
P8048AH, P8049AH,P8050AH, P8042AH Vea = 12V
D8748,D8749,D8742,D8741, D8742 Vea = 18V
Am29F400,Am29F800,29F160,29F320 (read,write byte mode)
HY29F200, HY29F400, HY29F800 , AT49F2048A, AT49F4096A, AT49F8192A
i28F200,i28F400,i28F800,i28F160 (TSOP48)
27C1024 (27C210), 27C2048 (27C2002), 27C4096 (27C4002),
by use Resister pull up Data Bus (0xFF), A0 select low or high byte)
EPROM 16bit (DIP42) (4-32Mbit)
M27C400(DIP40), 27C800, 27C160, 27C322
by use Resister pull up Data Bus (0xFF), A0 select low or high byte)
29LV200, 29LV400,29LV800,29LV160,29LV320 (read,write byte mode)
Adapter Firmware Hub/LPC (PLCC32) (PP mode) (3.3V)
82802AB, 82802AC, AT49LW040, AT49LW080
SST49LF002A, SST49LF003A, SST49LF004A, SST49LF008A
PIC  Microchip                              Â
10F200 10F202 10F204 10F206 10F220 10F222
12F508 12F509 12F510 12F629 12F635 12F675 rfPIC12F675 12F683
16F505 16F506 16F627 16F627A 16F628 16F628A 16F630 16F636 16F639Â 6F648A 16F676 16F684 16F685 16F687 16F688 16F689
16F690 16F72 16F73 16F74 16F76 16F77 16F716 16F737 16F747 16F767 16F777 16F785 16HV785 16F83 16F84 16F84A 16F87 16F88 16F818 16F819 16F870 16F871 16F872 16F873 16F873A 16F874 16F874A 16F876 16F876A 16F877 16F877A 16F913 16F914 16F916 16F917Â
16C61 16C62 16C62A/B 16C63 16C63A 16C64 16C64A 16C65 16C65A/B 16C66 16C67 16C620/A 16C621/A 16C622/A 16CE623 16CE624 16CE625 16C71 16C72 16C72a 16C73 16C73A/B 16C74 16C74A/B 16C76 16C77
16C710 16C711 16C712 16C716 16C745 16C765 16C773 16C774Â 16C923 16C924 16C925 16C926
18F1220 18F1320 18F2220 18F2320 18F2331 18F2410 18F242-2439 18F2420 18F2431 18F2455 18F248 18F2480 18F2510 18F2515
18F252-2539 18F2520 18F2525 18F2550 18F258 18F2580 18F2585 18F2610 18F2620 18F2680 18F4220 18F4320 18F4331 18F4410
18F442-4439 18F4420 18F4431 18F4455 18F448 18F4480 18F4510 18F4515 18F452-4539 18F4520 18F4525 18F4550 18F458 18F4580
18F4585 18F4610 18F4620 18F4680 18F6310 18F6390 18F6410 18F6490 18F6520Â
- add ATMEL FWH/LPC AT49LH002 AT49LH004
- add SST FWH/LPC SST 49LF002B SST 49LF003B SST 49LF004B SST 39LF040B
- add Winbond FWH/LPC§à ? Winbond 39v040AP Winbond 39v080AP
- add Amic FWH/LPC A49LF004 A49LF004TL A49LF004TL
-33C A49LF004TL-33F A49LF004TX A49LF040A A49LF040N 49LF040TL A49LF040TL
- add SPD IC: SD Memory: SPD 24C02 SPD 24C04 SPD 24C08 SPD 24C16 SPD 24C32(32)
DDR Memory: SPD 24C02 SPD 24C04 SPD 24C08 SPD 24C16 SPD 24C32(32) SPD 93C06(8 bit) SPD 93C46(8 bit) SPD 93C56(8 bit) SPD 93C57t(8 bit) SPD 93C66(8 bit) SPD 93C76t(8 bit)
- add PMC: PM49FL002T PM49FL004T PM49FL008T PM49F002T PM49F020 PM49F008T PM49F020A PM49F004T PM49F040
- Fixed Prog PM49FLxx (Test on PM49FL002T)
- add WINBOND: W39V040FA W39V040FAP W39V040BP W39V04OBPZ W49V040FBPZ W39V040FCP W39V040FCPZ W39V080AP W39V080APZ W39V080FAP W39V080FAPZ
- Fixed Prog EON29Fxx (Test on EN29F002T)
