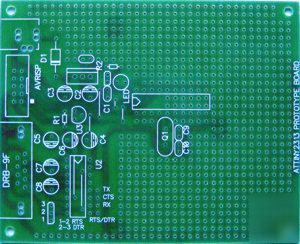

Avr atmel prototype board ATTINY2313 AT90S2313
AVR-P20 AVR MICROCONTROLLER PROTOTYPE BOARD FOR 20 PIN DEVICES WITH STKxxx COMPATIBLE 10 PIN ICSP CONNECTOR
* STK200 compatible ICSP 5x2 pin connector for in-circuit programming with AVR ISP, STK200, AVR ISP v3.2 and other
* RS232 Tx, Rx interface with MAX232 IC on socket
* Quartz crystall oscilator circuit
* DIL20 microcontroller socket
* +5V power supply based on 78L05
* extension pin headers for each uC pin
* four mounting holes 3.3 mm (0.13")
* FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
* dimensions 100x80 mm (3.9x3.15")
Supported devices: AT90S1200, AT90S2313
1mkF x 16V (Polarity of capasitors: + pin square pad, - pin round pad)
