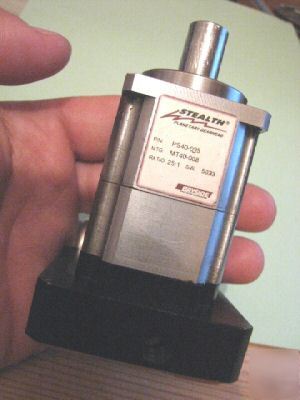

Bayside stealth planetary gearhead 1:25

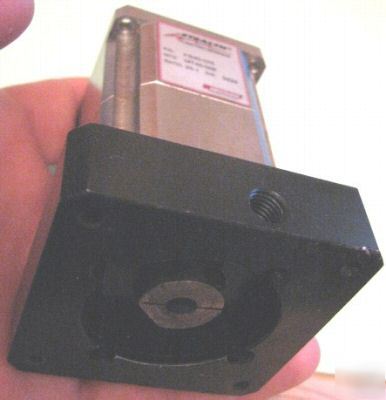

25 - 1 Planetary gear box, bolts directly to a NEMA 23 STEPPER or SERVO MOTOR.
Inputs coupling is for a 1/4" diameter shaft.
Output shaft is 13MM diameter, keyed.
The detailed drawing is available at:
http:// /Web/ProdCenter.nsf/6acd011b9d3d40ac8525695a006921c1/56bb4febac0b1e5b85256802004a74f3?OpenDocument.
Nominal Output Torque - 75 in-lb
Max. Acceleration Output Torque (1000 cycles) - 92 in-lb
Emergency Stop Output Torque (1000 cycles) - 210 in-lb
Nominal Input Speed - 4600 rpm
Standard Backlash - 14 arc min
Noise Level @ 3000 rpm - 68 dB
Torsional Stiffness - 16 in-lb/arc min
For more information -
ITEM WILL BE WELL AND SAFELY PACKED
