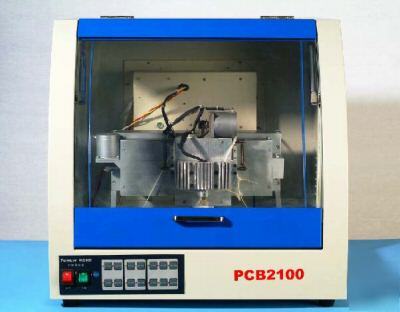

Cnc circuit board engraving making pcb machine no etch
1. high speed prototype machine, typical 100mm x 100mm board can be complete in less then 3 min.
2. high accuracy, machine design to 1mil tolerance, (0.025mm) suitable for large SMD or thou component board making
3. easy to use software, fully enclosed chassis.
Hole drilling, outline, trace routing all can complete in the same machine. High speed spindle command by XYZ control system route away the copper to form the PCB pattern, it also perform the drilling and outline routing. Simple software allow quick output to the machine to perform the work.
Minimum trace width, trace space
For the double side board, after the initial drilling, the plate via hole process can be done by the following step,
Drill hole>cleaning>raise>paint conductive to via hole>etching>raise> copper plating> raise > dry > PCB2100 trace routing and outline routing > done.
we are selling optional plating machine. will perform the consistence copper plating.
