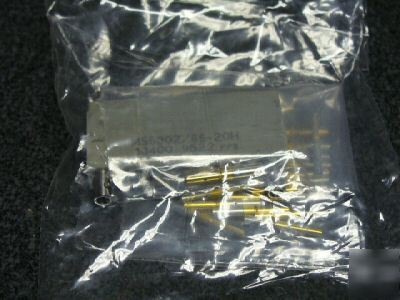

Connector,plug,electrical
BODY STYLE - 24A STRAIGHT SHAPE W/SCREW LOCKS
OVERALL LENGTH - 1.340 INCHES MINIMUM AND 1.360 INCHES MAXIMUM
OVERALL HEIGHT - 0.915 INCHES NOMINAL
OVERALL WIDTH - 0.250 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - JACKSCREW-SOCKET
THREADED DEVICE TYPE - COUPLING FACILITY
THREAD SERIES DESIGNATOR - UNC
NOMINAL THREAD SIZE - 0.856 INCHES
NOMINAL THREAD LENGTH - 0.130 INCHES
POLARIZATION METHOD - JACKSCREW
CONTACT POSITION ARRANGEMENT STYLE - AAAE 2 ROWS OF CONTACTS NON-INSERTED BOARD SINGLE MATING END
INSERT MATERIAL - PLASTIC DIALLYL PHTHALATE SINGLE MATING END
INSERT MATERIAL DOCUMENT AND CLASSIFICATION - MIL-M-14,TY SDG-F OR GDI-30F MIL SPEC SINGLE MATERIAL RESPONSE OR MIL-M-24519,TYPE GPT-30F MIL SPEC SINGLE MATERIAL RESPONSE OR MIL-P-46174,CLASS 40,GRADE E MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END
INCLUDED CONTACT QUANTITY - 20 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS - 5.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL DOCUMENT AND CLASSIFICATION - QQ-C-530 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-C-533 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-B-750 FED SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204,TYPE 2,CLASS 1,GRADE C MIL SPEC 1ST TREATMENT RESPONSE AND QQ-N-290,CLASS 2 FED SPEC 2ND TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - SHOCK RESISTANT AND VIBRATION RESISTANT AND CORROSION RESISTANT AND HUMIDITY RESISTANT
TEST DATA DOCUMENT - 81349-MIL-C-55302 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-C-55302/66 GOVERNMENT SPECIFICATION
III PRECIOUS MATERIAL AND WEIGHT - 0.020 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD
(NON-CORE DATA) JACKSCREW TYPE AND LOCATION - MALE LEFT-HAND AND FEMALE RIGHT-HAND
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-C-55302/66
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - M55302/66-20H
