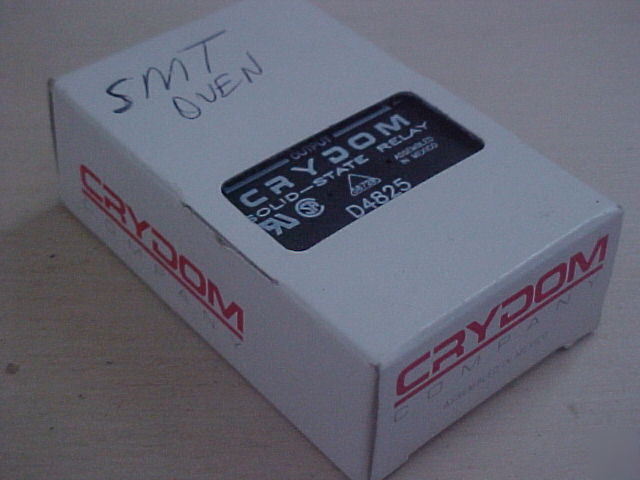

Crydom relay D4825, 1 dc, 25A, 48-530V, 25A 480VAC dc
Crydom Relay Series 1 DC, 25A, 48-530V
· Operating Voltage: 48-530 VAC
· Max Load Current: 0.04-25 Arms
Photobucket - Video and Image Hosting
Featuring state-of-the-art Surface Mount Technology, these SPST-NO
relays deliver proven reliability in the most demanding applications.
Output consists of an SCR AC switch and is available in zero-cross, random
turn-on (phase controllable) and versions with either AC or DC input (coil)
· Zero Voltage and Random Turn-On Switching
Operating Voltage (47-63 Hz) [Vrms]
Max. Surge Current, (16.6ms) [Apk]
Max. On-State Voltage Drop @ Rated Current [Vpk]
Thermal Resistance Junction to Case (RèJC) [°C/W]
Maximum I 2 t for Fusing, (8.3 msec.) [A 2sec]
Max. Off-State Leakage Current @ Rated Voltage [mArms]
Min. Off-State dv/dt @ Max. Rated Voltage [V/μsec]
1/2 Cycle (DC Input), 10.0 msec (AC Input)
1/2 Cycle (DC Input), 40.0 msec (AC Input)
Power Factor (Min.) with Max. Load
