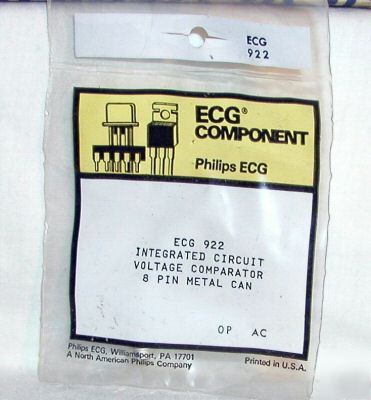

New ECG922 NTE922 voltage comparator metal can surplus
The NTE922 is a voltage comparator that has input currents nearly a thousand times lower than devices like the NTE910 or NTE910D. They are also designed to operate over a wider range of supply voltages: from standard 15V op amp supplies down to the single 5V supply used for IC logic. Their output is compatible with RTL, DTL and TTL as well as MOS circuits.
Further, they can drive lamps or relays, switching voltages up to 50V at currents as high as 50mA. Both the input and the output of these devices can be isolated from system ground, and the output can drive loads referred to ground, the positive supply or the negative supply. Offset balancing and strobe capability are provided and outputs can be wire OR’ed. Although slower than the NTE910 and NTE910D (200ns response time vs 40ns) the devices are also much less prone to spurious oscillations.
Operates from single 5V supply
Input current: 150nA max. over temperature
Offset current: 20nA max. over temperature
Differential input voltage range: 30V
Power consumption: 135mW at ?15V
You can find the Spec sheet Here.
