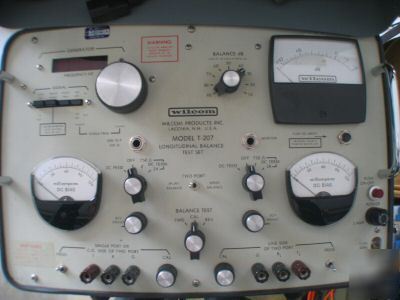

Wilcom t-207 lingitudinal balance test set, excellent
The T207 Longitudinal Balance Test Set is designed to measure the longitudinal balance of single-port or two-port circuits and devices. This test set permits evaluation of relays, feed coils, networks, long-line units, amplifiers and other equipment present on the typical communications circuit. These devices may have poor longitudinal balance and thus contribute to the susceptibleness of the facility.
The measuring technique and circuit configuration conforms to the IEEE standard 455-1976 for Longitudinal Balance Measurements. Longitudinal balance measurements may be made at single frequencies in the range of 40 Hz to 4 kHz. Also, as an added feature of the Model T207, a figure of merit balance measurement may be made using a shaped waveform which is representative of a power induced noise spectral distribution. Single frequency measurements on circuits with balance approaching 80 dB can be made with a typical accuracy of ± 1 dB.
Balance Measurements: 10 to 90 dB
Direct Reading of Balance in dB
Measure 1-Port and 2-Port Circuits or Devices
Built-in Longitudinal Signal Sources Single Frequency Tests:
DC Current Source for Circuits Under Test
Verification of Validity of Measurement

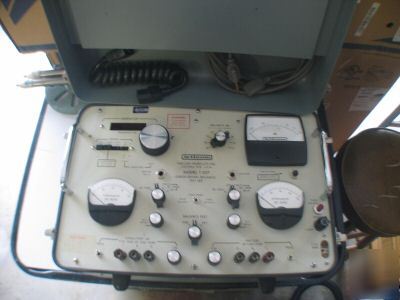

Item is in good working condition, guaranteed not DOA, but not every function fully tested, not used for years. Great physical condition. Includes metal cover and power cords. Cover has some damage, dents, but fits nicely with locking latches.
