CT1720 start kit - basic touch screen start kit

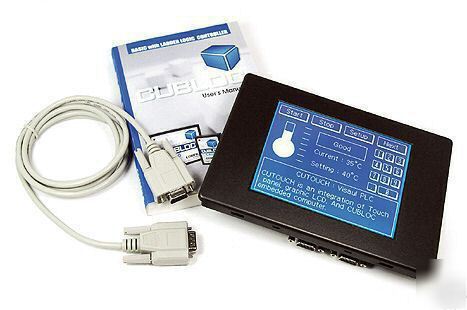

The CT1720 Start Kit is recommended for 1st timer users of CuTOUCHâ„¢ who want to get started
quickly. The Start Kit comes with the Touch-screen integrated module, RS232 serial cable,
User's Manual, Mounting Brackets, and all necessary development software on CD.
The CuTOUCHâ„¢ essentially serves as the brains inside of electronics projects and applications
that would require a programmable microcontroller or a PLC.
The CuTOUCHâ„¢ has ability to control and monitor switches, timers, motors, sensors, relays, valves, and etc...
The best part is that programming may be performed in the CUBLOC BASIC and/or Ladder Logic languaage. CUBLOC BASIC is very similar to most other BASIC chips. CUBLOC Ladder Logic is very similar to industry Ladder Logic standards with a quick learning curve.
Whether you are a 7 year old child or a 80 year old man, you can still learn CUBLOC BASIC within hours!
Dual Core Atmega128 @ 18.432Mhz
24KB(BASIC) + 4KB(Ladder Logic)
- 82 I/O lines (5V TTL) (33 input only + 32 output only + 17 input/output configurable)
Serial Ports for Communication
- 2 High-speed hardware-independent serial ports (Channel 0 & 1 : RS232C 12V)
- Configurable Baud rates: 2400bps to 230,400 bps
- Configurable Frequency: 35hz to 1.15Mhz
2 Channel 16-bit Counters (up to 2Mhz)
- Current Consumption w/ ports unloaded:
- Configurable Interval Units = 10ms
* Yes, a 1 Fahrad rechargable Super-Capacitor is included.

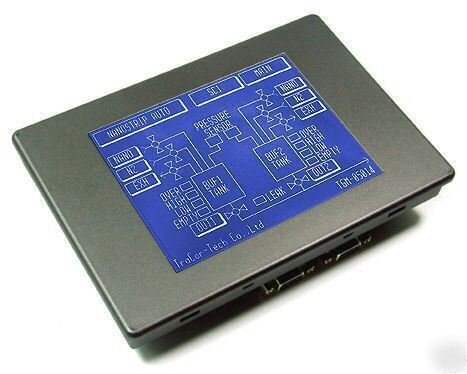

Integrated Touch-screen Panel w/ 2mm Headers and 2.5mm RCABLE Headers
- 7.17" x 5.17" x 0.98" (182.2 x 131.4 x 25 mm)
- Viewing Area (Touch-sesitive):
* The 1.0F super-capacitor on the CuTOUCHâ„¢ will back up the data memory for a period of approximately 10 days during power-down.
For longer duration of backup period, please use a battery or a super-capacitor with larger capacity (e.g. A 10F super-capacitor will last you ~100 days or 3 months, a battery can extend this period to 1 to 10 years depending on the capacity of the battery used)

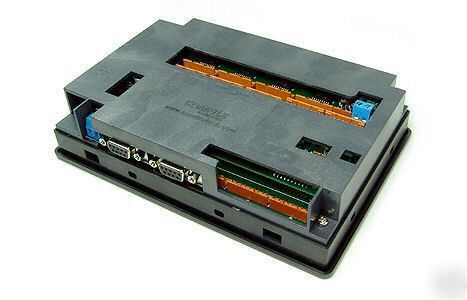

I/O Connectors and Brackets included for panel mounting.
For connector info, please refer to Product->ETC->Connectors on our homepage.
