Centent CN0142 anti-resonance microstep drive 10U res.
This listing is for a step / stepper / stepping motor drive control / controller.
* Anti-Resonance Drive Control
* List Price: Approx. $350
___________________________________________________________________________________
The CN0142 / CN0143 drives are for use with most size 23 and size 34 motors. They are compensated for mid-band instability, allowing reliable operation at full power at all speeds. Microstepping virtually eliminates low speed vibration while adding useful motor resolution.
A wide power supply voltage and phase current range allows you to easily tailor the CN0142 / CN0143 to your application, be it low speed / high torque or high speed / high power. A unique "fill" circuit smoothly transitions from microstepping at low speeds to full stepping at high speeds, extracting the maximum performance from your motor.
The chopper switching frequency of the CN0142 / CN0143 increases proportionally with the power supply voltage to reduce motor heating caused by ripple current induced losses at higher power supply voltages. All switching activity on the motor phase lines can be disabled to eliminate all noise and motor heating while stopped without losing position when switching activity is enabled again. An all n-channel MOSFET output stage and low current consumption circuit design minimizes drive heating due to motor phase currents as well as quiescent power consumption.
Robust circuit design and an epoxy encapsulated package contribute to a reliable and rugged step motor drive.
* Resolution 10 uStep (fixed)
* Power Supply Voltage 24 VDC to 60 VDC
* Phase Current (CN0142) .75 Amps to 3.6 Amps
* Phase Current (CN0143) 1.5 Amps to 7.2 Amps
* Switching Frequency 20 kHz to 60 kHz
* Power Dissipation 30 Watts (max)
* Operating Temperature -20 to 70 Deg C
Further information is located at http:// /cn0142.htm
___________________________________________________________________________________
This is used and in excellent condition. Guaranteed to be in proper, working order.

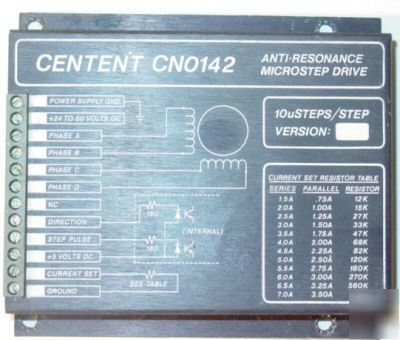

Check out the picture for more information. Feel free to ask any questions. WANT TO REACH ME BY PHONE? Feel free to call me (Trent) toll free @ (***) 972-1346.
