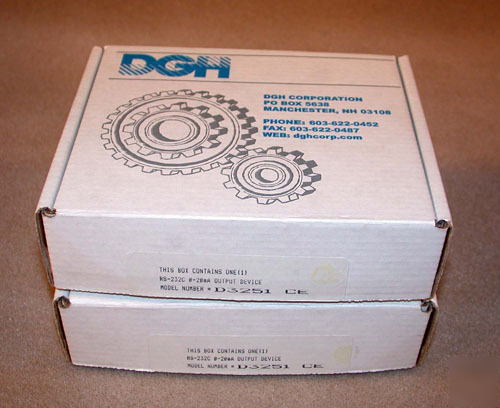

2 dgh D3251 current output modules 1 channel 20MA RS223
Single channel 0-20mA current output module with RS-232 input
The D3200 and D4200 series. Each series convert digital ASCII data signals from a host computer to analog DC current output signals using an internal 12-bit digital to analog converter. The current signals can be used to control annunciators, actuators or other hardware that requires a control input signal.
The D3200 series modules are a cost effective solution for simple step function control applications.
The D4200 series modules contain higher level functions for controlling output slew rates, communications watch-dog timer, and user-programmable start-up value.
The D3000/4000 series modules can also be mounted on a DIN-Rail using the MK-1 mounting kit.
The hardware ranges, specifications and model numbers are all listed below.
Current Outputs: 4-20mA, 0-20mA.
Accuracy: 0.1% of full scale range max.
Settling time: 300uS typical (1 mS max.).
Span tempco: +/-50ppm/degree C max.
Current output compliance voltage: +/-12V.
More information available from the manufacturer by clicking
