Allen-bradley/rockwell slc 500 plc programmable control

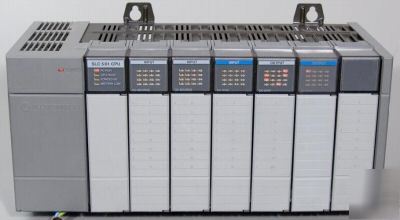

AB Allen-Bradley/Rockwell SLC 500 PLC Programmable Controller
Comes with what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from Allen-Bradley and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
The Chassis's Serial Number Tag Reads:
* Serial Number: A7-0391N1202
* Backplane says 1746-A7, 100760, C-8730-1303-5, No: 910547
The Power Supply's Serial Number Tag Reads:
* Serial Number: P1-0691N1248
* Line Voltage: 85-132 VAC~, 170-265 VAC~, 50/60 Hz
* Output: 2A @ 5 VDC, 0.46 A @ 24 VDC, User 0.2 A @ 24 VDC
* SLC 5/01 CPU, SLC 500 Processor Unit
* Catalog: 1747-L511, Ser: B
* Serial Number: L511-0391N1168, FRN: 4
* Catalog: 1746-IV16, Ser: A
* Serial Number: IV16-0890N1669
* Description: 24 VDC, 16 I/O Points, Current Sourcing DC Input Module
* Catalog: 1746-IV16, Ser: A
* Serial Number: IV16-0890N1644
* Description: 24 VDC, 16 I/O Points, Current Sourcing DC Input Module
* SLC 500 Input Module DC-Sink
* Catalog: 1746-IB16, Ser: B
* Serial Number: IB16-0691N1720
* Description: 24 VDC, 16 I/O Points, Current Sinking DC Input Module
* Serial Number: OV16-1290N1033
* 10-50 VDC, 0.5A @ Output 30°C, 0.25 A @ 60°C
* Description: 24 VDC, 16 I/O Points, Current Sinking DC Output Module
* Catalog: 1746-OV16, Ser: C
* Serial Number: WIN(21)6H1AW8TK, MFG Date: 0297
* 10-50 VDC, 0.5A @ Output 30°C, 0.25 A @ 60°C
* Description: 24 VDC, 16 I/O Points, Current Sinking DC Output Module
* Catalog Number: 1746-N2, Ser: A
The Allen-Bradley SLC 500 is Rockwell Automation's small, chassis-based, modular family of programmable controllers and I/O. The SLC's smaller size means that you can use an SLC in applications where you can't afford the size and overhead of a traditional, full-size PLC. With its multiple processor choices, numerous power supply options and extensive I/O capacity, the modular SLC 500 controller allows you to create a system specifically designed for your application.
The SLC 500 was one of the first full-featured small controllers on the market, and it remains the gold standard in small logic controllers more than a decade after its introduction. In fact, the SLC 500 provides cost-effective, reliable control in hundreds of thousands of applications around the world — everything from amusement park rides to pharmaceutical and food processes.
Right For Today. Ready For Tomorrow.:
SLC 500 controllers control hundreds of thousands of processes around the world — everything from amusement park rides to pharmaceutical processing.
* 1.5M processors and 12M, I/O modules installed worldwide
* Used by over 75% of companies comprising the Dow Jones Industrial Average (DJIA)
* Large choice of I/O available from Rockwell Automation and third party companies, making these products appropriate for almost any application
* Proven Reliability. An example is the addition of 1747-BSN Back-Up Scanner, which has grown application base to even more critical areas
A Solid Investment. Today. Tomorrow.:
* Excellent quality now and in the future
* Continued support for an enormous installed base
* On-going engineering investment
For More Pictures Please Click the Following:
* Picture 3 - Side View (Connector is hard to show but it is there
* Picture 4 - Back Plane w/out Modules
* Picture 5 - Power Supply Module
* Picture 6 - CPU, Input, Input Modules
* Picture 7 - Input, Output, Input Modules
* Picture 8 - Power Supply Serial Number Tag
* Picture 9 - 7-Slot Rack Serial Number Tag
