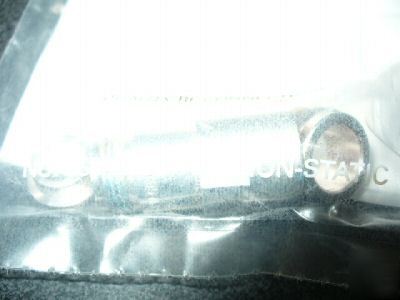

Connector,plug,electrical
BODY STYLE - 5D STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH - 1.672 INCHES NOMINAL
OVERALL DIAMETER - 0.781 INCHES NOMINAL
CONNECTOR LOCKING METHOD - EXTERNALLY THREADED SHELL
THREADED DEVICE TYPE - COUPLING FACILITY
THREAD SERIES DESIGNATOR - UNEF
NOMINAL THREAD SIZE - 0.625 INCHES
CONNECTOR CABLE STRAIN RELIEF METHOD - CONDUIT NUT
CABLE ENTRANCE DIAMETER - 0.119 INCHES MINIMUM AND 0.124 INCHES MAXIMUM
CONTACT POSITION ARRANGEMENT STYLE - ABCE N SINGLE MATING END
INCLUDED CONTACT QUANTITY - 1 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - COAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING
RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS - 50.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204 TY 2,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - SHOCK PROOF AND VIBRATION PROOF
TEST DATA DOCUMENT - 81349-MIL-C-39012 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-C-39012/2 GOVERNMENT SPECIFICATION
III PRECIOUS MATERIAL AND WEIGHT - 0.005 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-C-39012/2
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - M39012/02-0003
