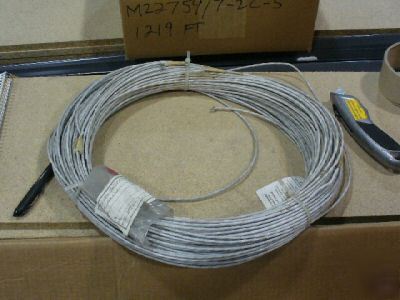

Cable,special purpose,electrical
CONDUCTOR FORM - STRANDED ALL CONDUCTORS
MATERIAL - COPPER CORE CONDUCTOR ALL CONDUCTORS, PLASTIC ETHYLENE-TETRAFLUOROETHYLENE 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS
SURFACE TREATMENT - TIN CORE CONDUCTOR ALL CONDUCTORS
ROUND CONDUCTOR SIZE - 24 AWG ALL CONDUCTORS
STRAND QUANTITY PER CONDUCTOR - 19 ALL CONDUCTORS
STRAND AWG SIZE PER CONDUCTOR - 36 ALL CONDUCTORS
COLOR - WHITE 1ST POSITION JACKET CABLE, WHITE 1ST POSITION COVER ALL CONDUCTORS
TRACER COLOR - BLUE FIRST TRACER ALL CONDUCTOR, ORANGE SECOND TRACER ALL CONDUCTOR
VOLTAGE RATING - 600.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE ALL CONDUCTORS
CROSS-SECTIONAL SHAPE STYLE - 6 ROUND
CROSS SECTION OUTSIDE DIAMETER - 0.024 INCHES NOMINAL
TEMP RATING - 150.0 DEG CELSIUS
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-PRF-27500
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - M27500-24TE3T14
